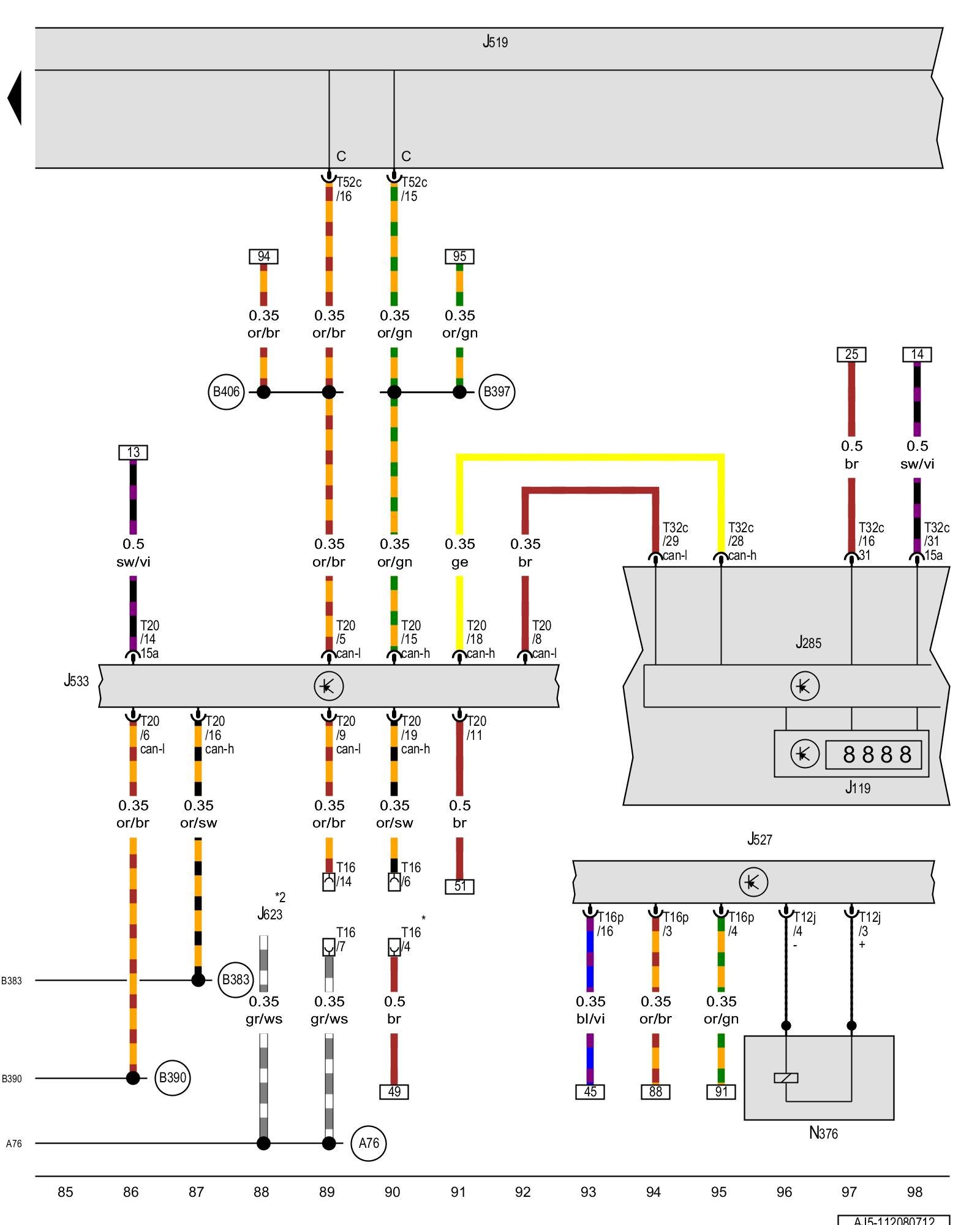

Diagram 112/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Multifunction indicator, Instrument cluster control module, Vehicle electrical system control module, Data bus on board diagnostic interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J119 - Multifunction indicator

J285 - Instrument cluster control module

J519 - Vehicle electrical system control module Locations

J527 - Steering column electronics control module Locations Locations Steering Column Electronics Control Module -J527-

J533 - Data bus on board diagnostic interface Locations

J623 - Engine control module

N376 - Ignition switch key lock solenoid

T12j - 12-pin connector

T16 - 16-pin connector

T16p - 16-pin connector

T20 - 20-pin connector

T32c - 32-pin connector

T52c - 52-pin connector

(A76) - KS-diagnostic lead connection (in instrument panel wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

* - Diagnostic connector

*2 - Refer to applicable engine wiring diagram
