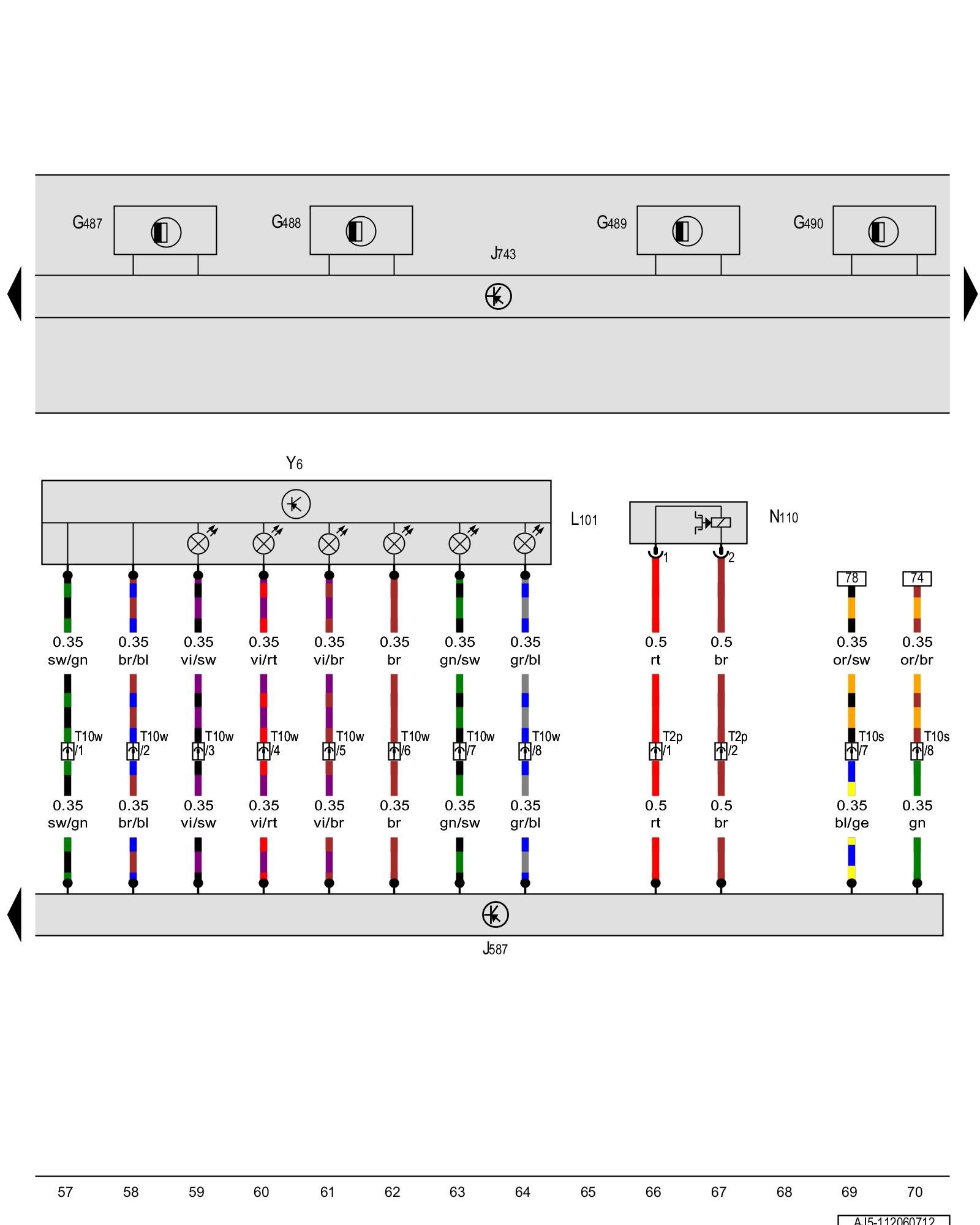

Diagram 112/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Gear position distance sensor 1, Gear position distance sensor 2, Gear position distance sensor 3, Gear position distance sensor 4, Selector lever sensor system control module, DSG transmission Mechatronic, Selector lever scale illumination bulb, Shift lock solenoid, Transmission range display





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G487 - Gear position distance sensor 1 Locations

G488 - Gear position distance sensor 2 Locations

G489 - Gear position distance sensor 3 Locations

G490 - Gear position distance sensor 4 Locations

J587 - Selector lever sensor system control module Locations

J743 - DSG transmission Mechatronic Locations Connector Views

L101 - Selector lever scale illumination bulb

N110 - Shift lock solenoid LocationsT2p - Double connector, under the selector lever

T10s - 10-pin connector, under the selector lever

T10w - 10-pin connector, under the selector lever

Y6 - Transmission range display
