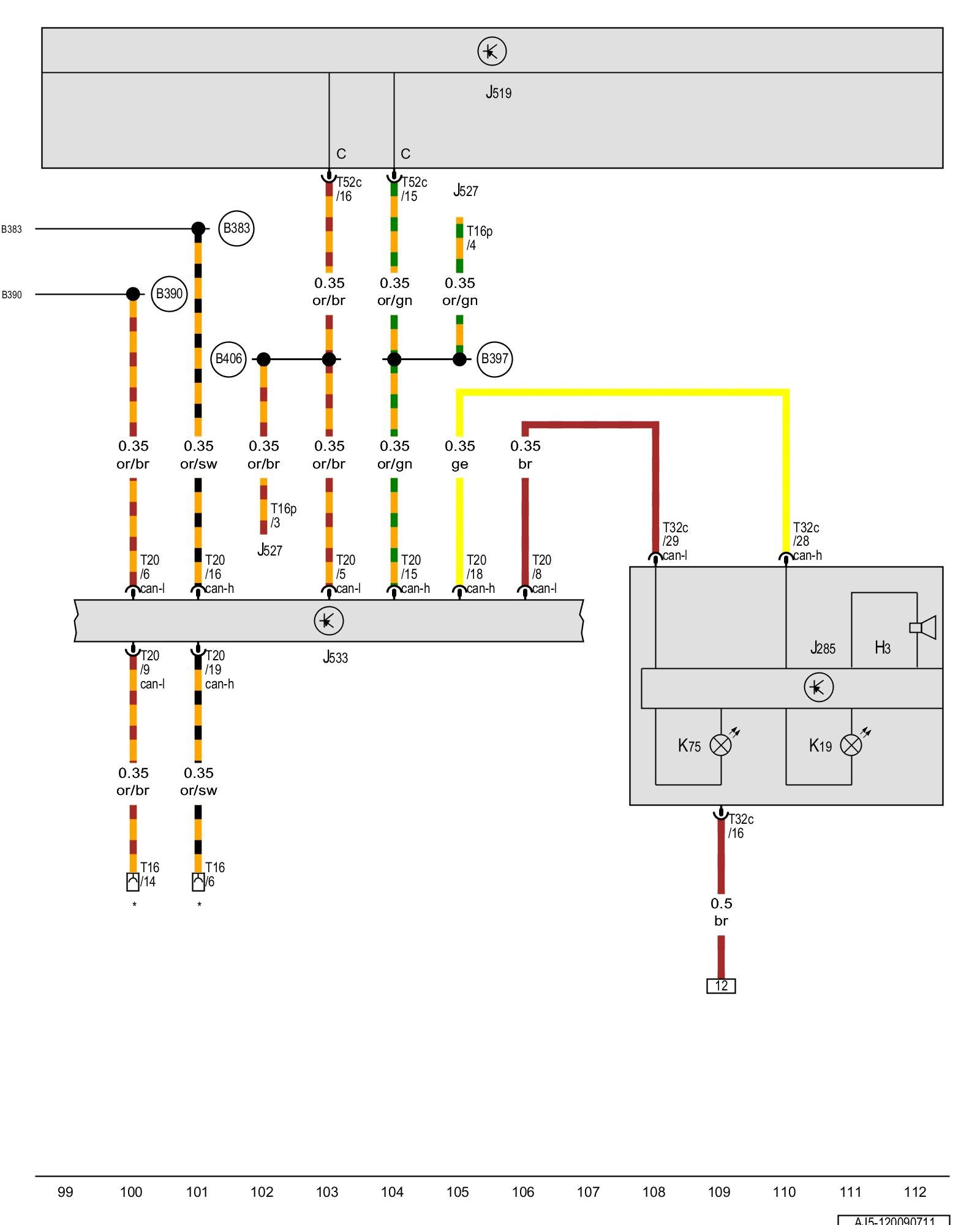

Diagram 120/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Warning buzzer and tone, Instrument cluster control module, Vehicle electrical system control module, Data bus on board diagnostic interface, Seat belt indicator lamp, Airbag indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

H3 - Warning buzzer and tone Locations

J285 - Instrument cluster control module

J519 - Vehicle electrical system control module

J527 - Steering column electronics control module Locations Locations Steering Column Electronics Control Module -J527-

J533 - Data bus on board diagnostic interface Locations

K19 - Seat belt indicator lamp

K75 - Airbag indicator lamp

T16 - 16-pin connector

T16p - 16-pin connector

T20 - 20-pin connector

T32c - 32-pin connector

T52c - 52-pin connector

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

* - Diagnostic connector

Previous Diagram 120/8 (Tracks 85-98)
