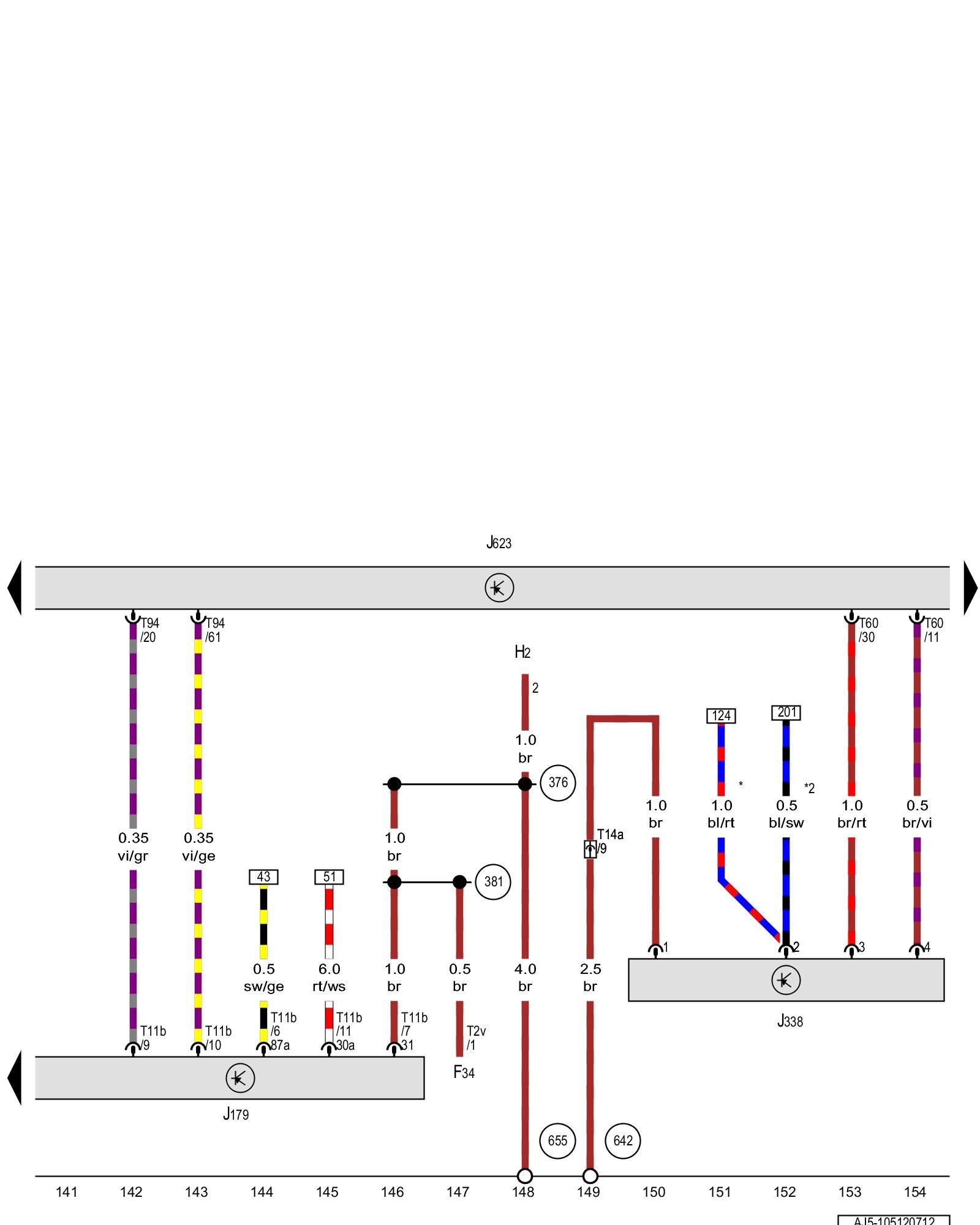

Diagram 105/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Brake fluid level warning switch, Automatic glow time control module, Throttle valve control module, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F34 - Brake fluid level warning switch

H2 - High tone horn Central Locking / Anti-Theft System Overview

J179 - Automatic glow time control module Locations 2.0L CJAA TDI [1][2]Diagrams

J338 - Throttle valve control module Locations [1][2]Diagrams

J623 - Engine control module

T2v - Double connector

T11b - 11-pin connector

T14a - 14-pin connector

T60 - 60-pin connector

T94 - 94-pin connector

(376) - Ground connection 11 (in main wiring harness)

(381) - Ground connection 16 (in main wiring harness)

(642) - Electronic fan control ground connection Locations

(655) - Ground connection on left headlamp Locations

* - from July 2011

*2 - Through June 2011
