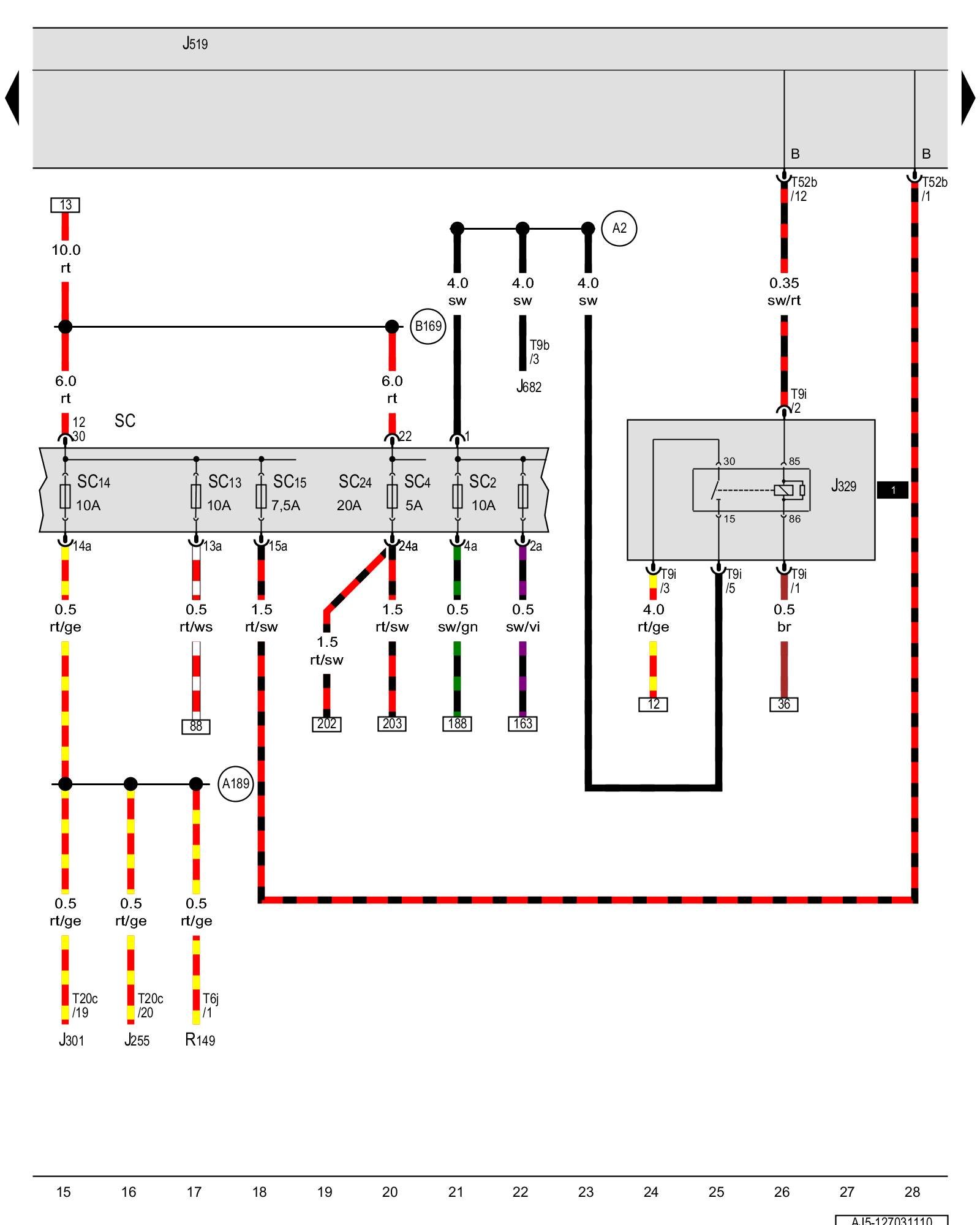

Diagram 127/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Terminal 15 power supply relay, Vehicle electrical system control module, Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J255 - Climatronic control module Pass Compartment Climatronic (Automatic Climate Control) System Climatronic (Automatic Climate Control) Control Module -J255-

J301 - A/C control module Pass Compartment A/C and Heating System A/C Control Module -J301-

J329 - Terminal 15 power supply relay

J519 - Vehicle electrical system control module Locations

J682 - Terminal 50 power supply relay Locations Locations

R149 - Auxiliary engine coolant heater radio frequency receiver

SC - Fuse panel C

SC2 - Fuse 2 (on fuse panel C)

SC4 - Fuse 4 (on fuse panel C)

SC13 - Fuse 13 (on fuse panel C)

SC14 - Fuse 14 (on fuse panel C)

SC15 - Fuse 15 (on fuse panel C)

SC24 - Fuse 24 (on fuse panel C)

T6j - 6-pin connector

T9b - 9-pin connector

T9i - 9-pin connector

T20c - 20-pin connector

T52b - 52-pin connector

(A2) - Positive connection (15) (in instrument panel wiring harness)

(A189) - Positive connection 5 (30a) (in instrument panel wiring harness)

(B169) - Positive connection 1 (30) (in interior wiring harness)

Previous Diagram 127/2 (Tracks 1-14)

Next Diagram 127/4 (Tracks 29-42)
