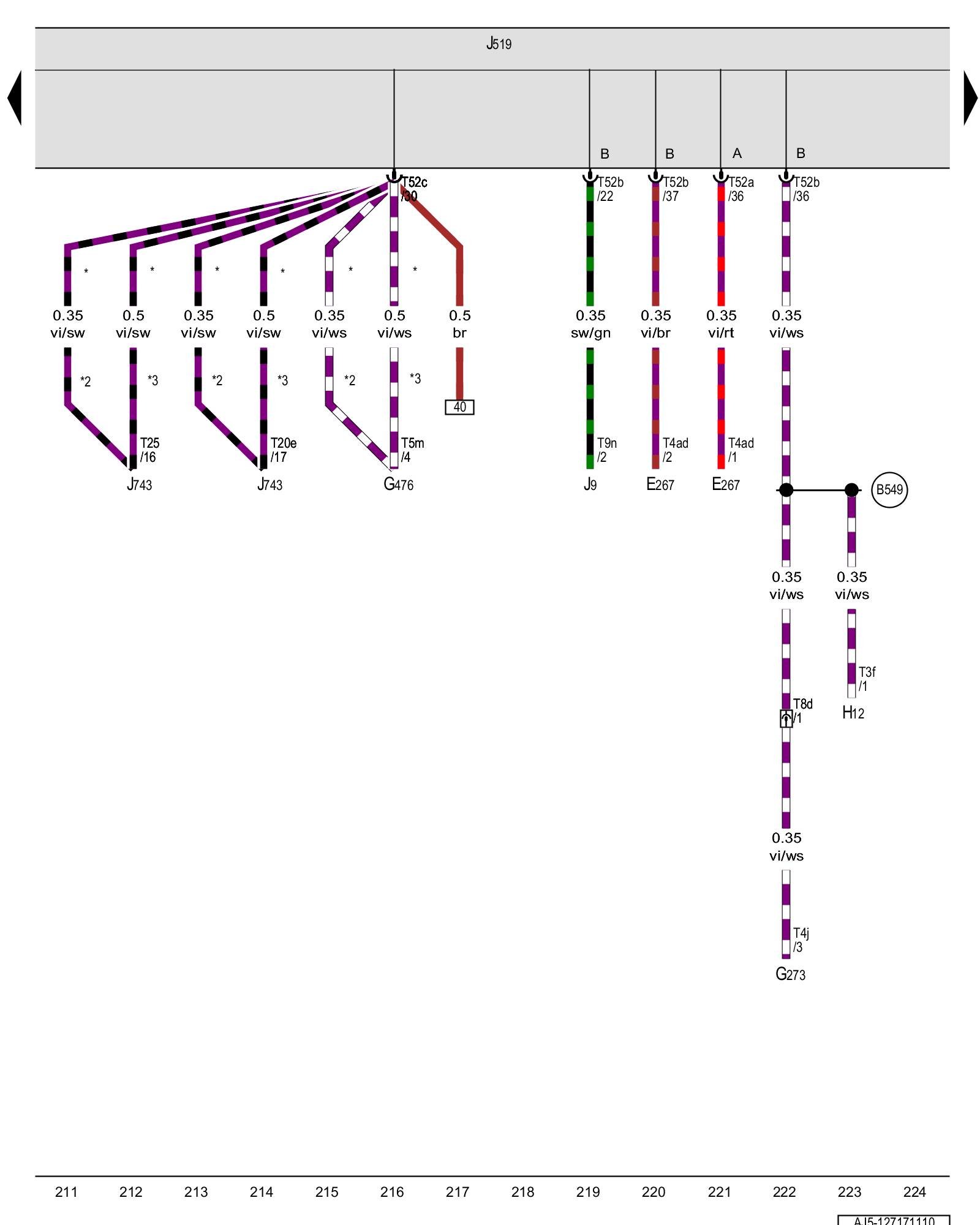

Diagram 127/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E267 - Interior monitoring deactivation switch

G273 - Interior monitoring sensor Central Locking / Anti-Theft System Overview

G476 - Clutch position sensor 2.5L CBTA and CBUA Diagrams

H12 - Alarm horn Central Locking / Anti-Theft System Overview

J9 - Rear window defogger relay

J519 - Vehicle electrical system control module Locations

J743 - DSG transmission Mechatronic Locations Locations

T3f - 3-pin connector

T4ad - 4-pin connector

T4j - 4-pin connector

T5m - 5-pin connector

T8d - 8-pin connector

T9n - 9-pin connector

T20e - 20-pin connector

T25 - 25-pin connector

T52a - 52-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

(B549) - LIN bus connection 2 (in main wiring harness)

* - Depending on equipment

*2 - From December 2010

*3 - Through December 2010
