Diagram 127/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

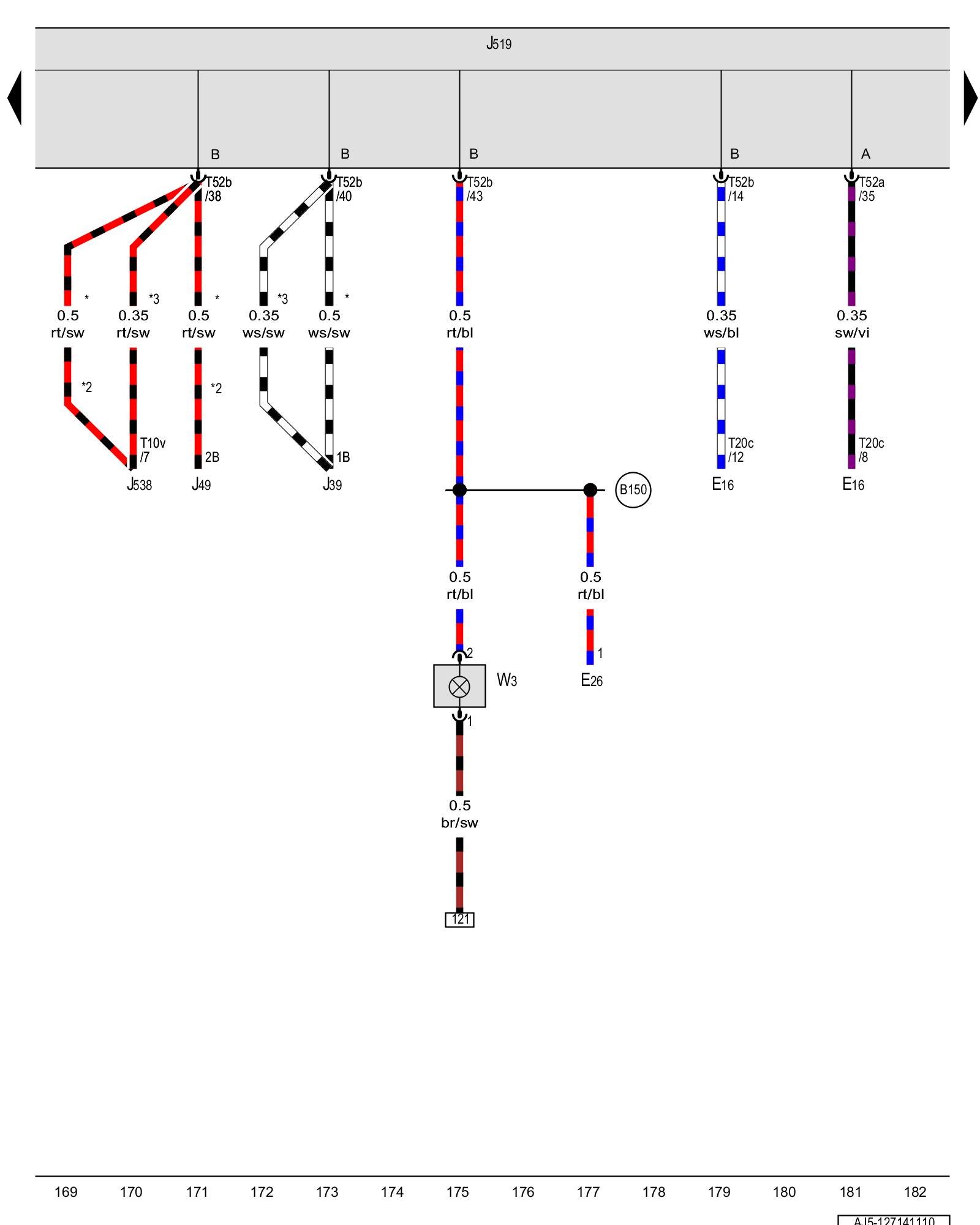

Vehicle electrical system control module, Luggage compartment lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E16 - Heater/heat output switch

E26 - Glove compartment lamp switch

J39 - Headlamp washer relay

J49 - Fuel pump relay 2

J519 - Vehicle electrical system control module Locations

J538 - Fuel pump control module Locations

T10v - 10-pin connector

T20c - 20-pin connector

T52a - 52-pin connector

T52b - 52-pin connector

W3 - Luggage compartment lamp

(B150) - Positive connection 2 (30a) (in interior wiring harness)

* - Through December 2010

*2 - Depending on equipment

*3 - From December 2010
