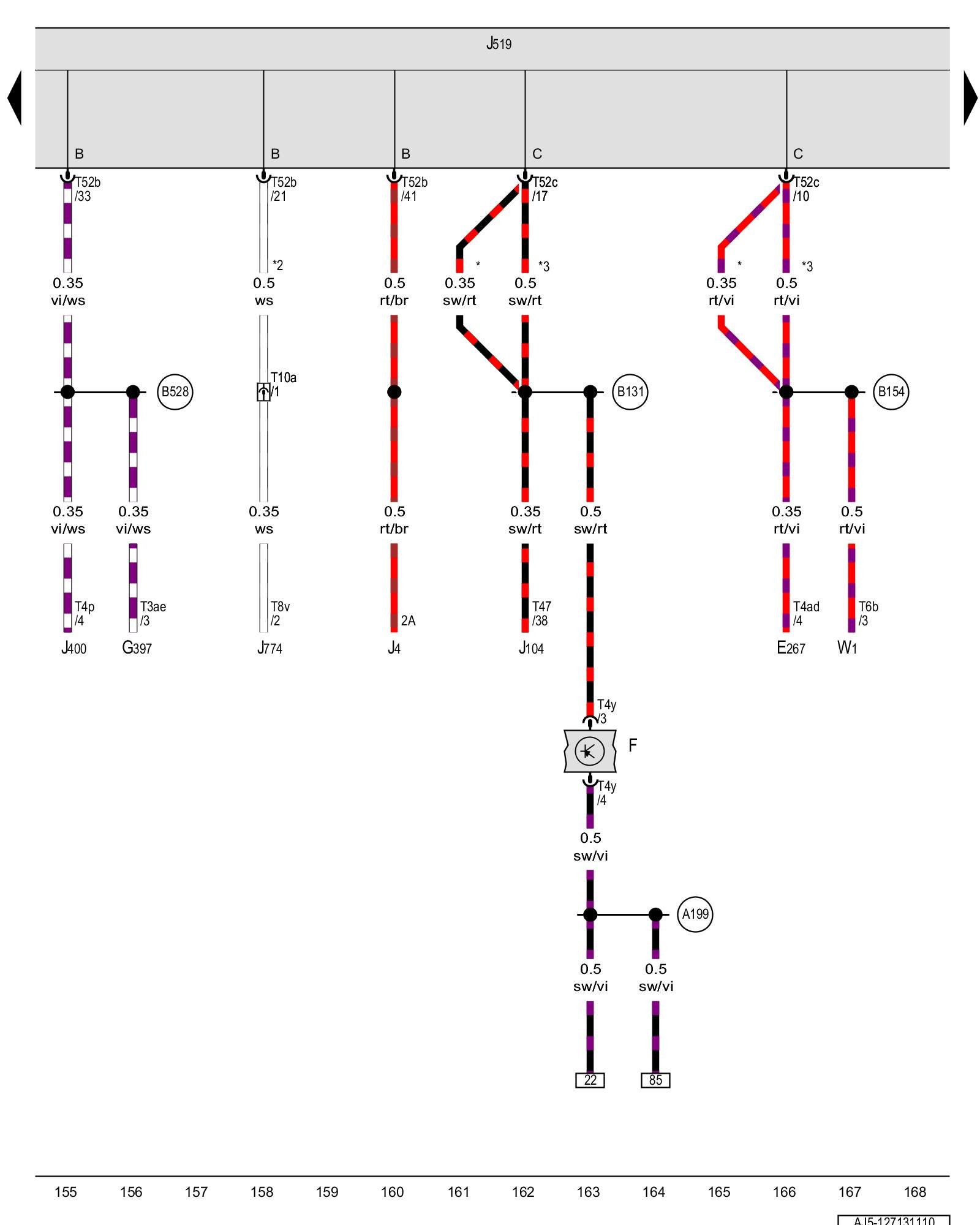

Diagram 127/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Brake lamp switch, Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E267 - Interior monitoring deactivation switch

F - Brake lamp switch Locations [1][2]Brake Light Switch

G397 - Rain/light recognition sensor

J4 - Dual tone horn relay

J104 - ABS control module Locations [1][2]Diagrams

J400 - Wiper motor control module

J519 - Vehicle electrical system control module Locations

J774 - Front seat heating control module Locations [1][2]Diagrams

T3ae - 3-pin connector

T4ad - 4-pin connector

T4p - 4-pin connector

T4y - 4-pin connector

T6b - 6-pin connector

T8v - 8-pin connector

T10a - 10-pin connector

T47 - 47-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

W1 - Front interior lamp

(A199) - Positive connection 4 (15a) (in instrument panel wiring harness)

(B131) - Connection (54) (in interior wiring harness)

(B154) - Connection 1 (TK) (in interior wiring harness)

(B528) - LIN bus connection 1 (in main wiring harness)

* - From December 2010

*2 - Only for vehicles with an auxiliary heater

*3 - Through December 2010
