Diagram 127/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

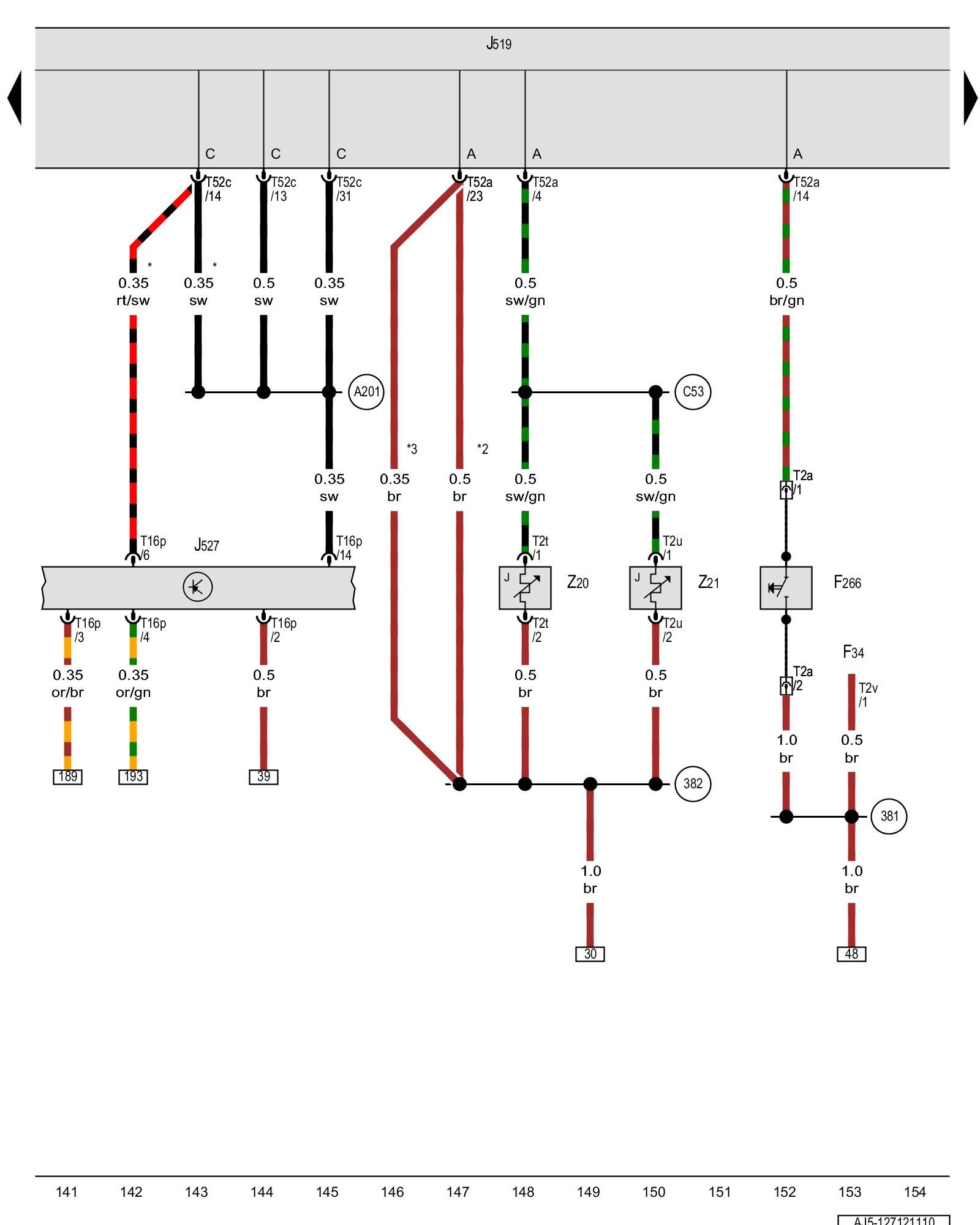

Engine hood contact switch, Vehicle electrical system control module, Steering column electronics control module, Left washer nozzle heater, Right washer nozzle heater





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F34 - Brake fluid level warning switch

F266 - Engine hood contact switch Central Locking / Anti-Theft System Overview

J519 - Vehicle electrical system control module Locations

J527 - Steering column electronics control module Locations Locations Steering Column Electronics Control Module -J527-

T2a - Double connector

T2t - Double connector

T2u - Double connector

T2v - Double connector

T16p - 16-pin connector

T52a - 52-pin connector

T52c - 52-pin connector

Z20 - Left washer nozzle heater

Z21 - Right washer nozzle heater

(381) - Ground connection 16 (in main wiring harness)

(382) - Ground connection 17 (in main wiring harness)

(A201) - Positive connection 6 (15a) (in instrument panel wiring harness)

(C53) - Positive connection (x) (in heated spray nozzle wiring harness)

* - Depending on equipment

*2 - Through December 2010

*3 - From December 2010
