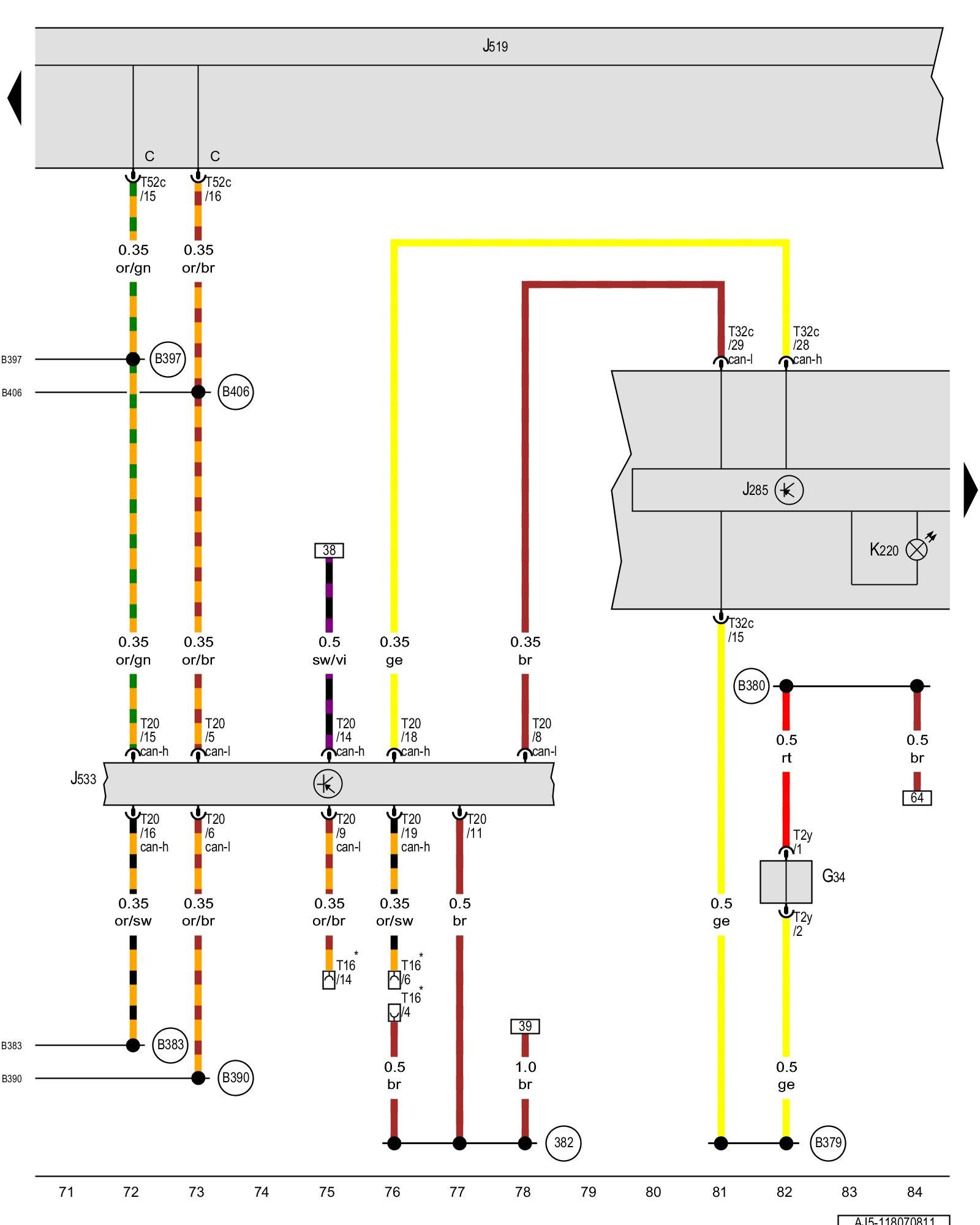

Diagram 118/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Left front brake pad wear sensor, Instrument cluster control module, Vehicle electrical system control module, Data bus on board diagnostic interface, Tire pressure monitoring display indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G34 - Left front brake pad wear sensor Locations

J285 - Instrument cluster control module

J519 - Vehicle electrical system control module

J533 - Data bus on board diagnostic interface, in the left footwell, near the center console Locations

K220 - Tire pressure monitoring display indicator lamp

T2y - Double connector

T16 - 16-pin connector

T20 - 20-pin connector

T32c - 32-pin connector

T52c - 52-pin connector

(382) - Ground connection 17 (in main wiring harness)

(B379) - Brake wear indicator connection 1 (in main wiring harness)

(B380) - Brake wear indicator connection 2 (in main wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

* - Diagnostic connector
