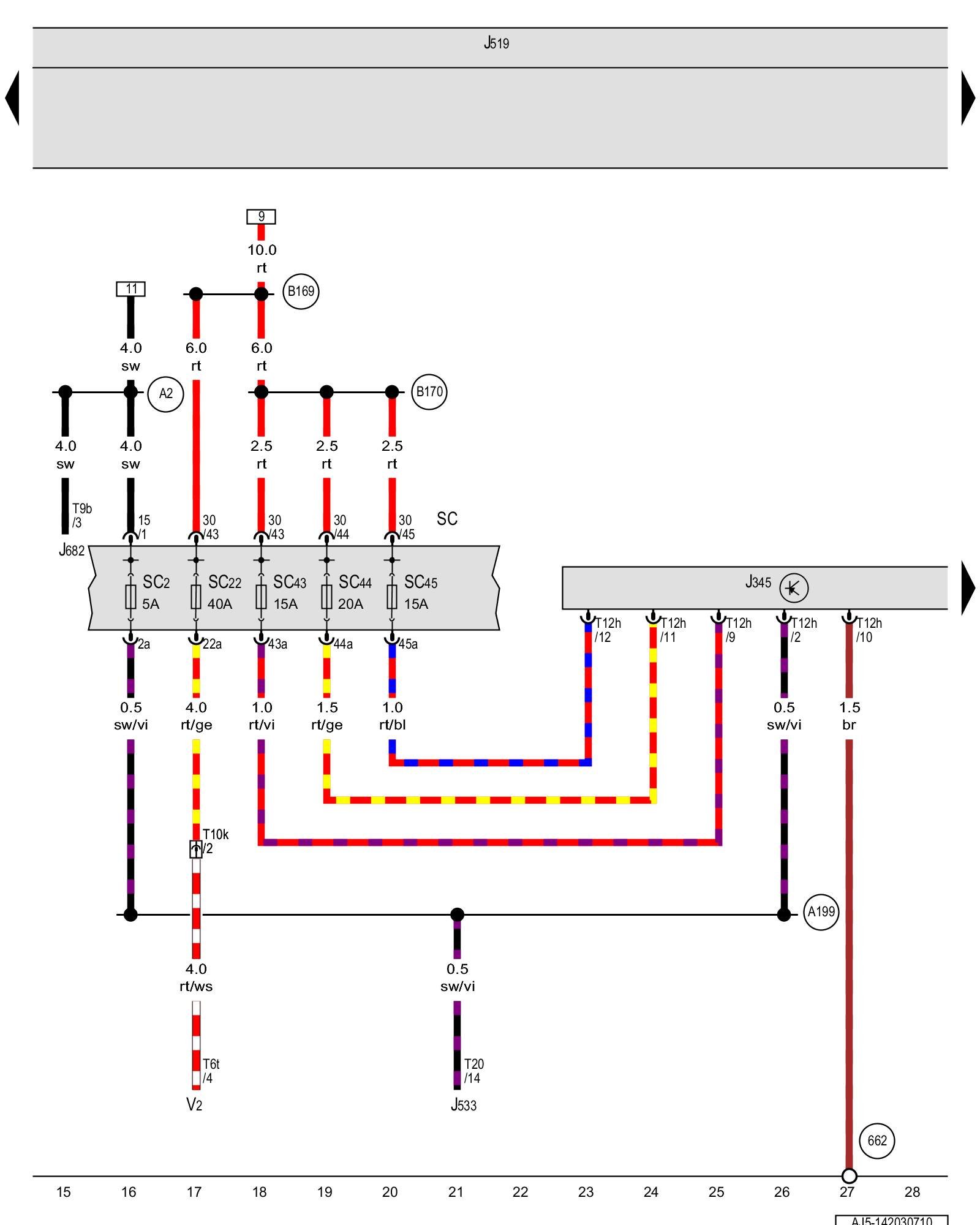

Diagram 142/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Towing recognition control module, Vehicle electrical system control module, Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J345 - Towing recognition control module Connector Views

J519 - Vehicle electrical system control module Locations

J533 - Data bus on board diagnostic interface Locations

J682 - Terminal 50 power supply relay Locations Locations

SC - Fuse panel C

SC2 - Fuse 2 (on fuse panel C)

SC22 - Fuse 22 (on fuse panel C)

SC43 - Fuse 43 (on fuse panel C)

SC44 - Fuse 44 (on fuse panel C)

SC45 - Fuse 45 (on fuse panel C)

T6t - 6-pin connector

T9b - 9-pin connector

T10k - 10-pin connector

T12h - 12-pin connector

T20 - 20-pin connector

V2 - Fresh air blower Pass Compartment A/C and Heating System Diagrams

(662) - Ground connection in left rear side panel

(A2) - Positive connection (15) (in instrument panel wiring harness)

(A199) - Positive connection 4 (15a) (in instrument panel wiring harness)

(B169) - Positive connection 1 (30) (in interior wiring harness)

(B170) - Positive connection 2 (30) (in interior wiring harness)

Previous Diagram 142/2 (Tracks 1-14)

Next Diagram 142/4 (Tracks 29-42)
