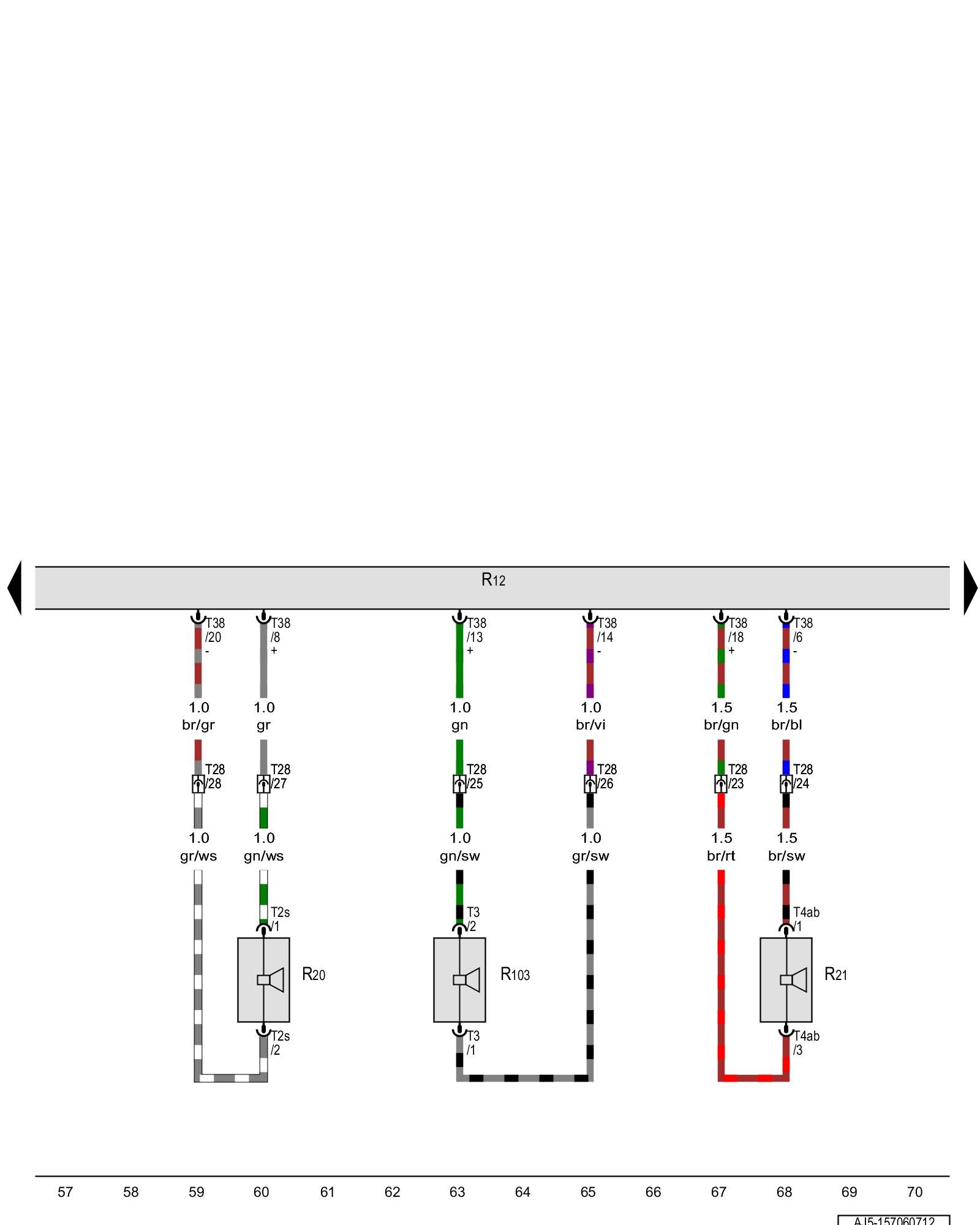

Diagram 157/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Amplifier, Left front treble speaker, Left front bass speaker, Left front midrange speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R12 - Amplifier Premium 8 Sound System Overview

R20 - Left front treble speaker

R21 - Left front bass speaker

R103 - Left front midrange speaker

T2s - Double connector

T3 - 3-pin connector

T4ab - 4-pin connector

T28 - 28-pin connector

T38 - 38-pin connector

* - Depending on equipment
