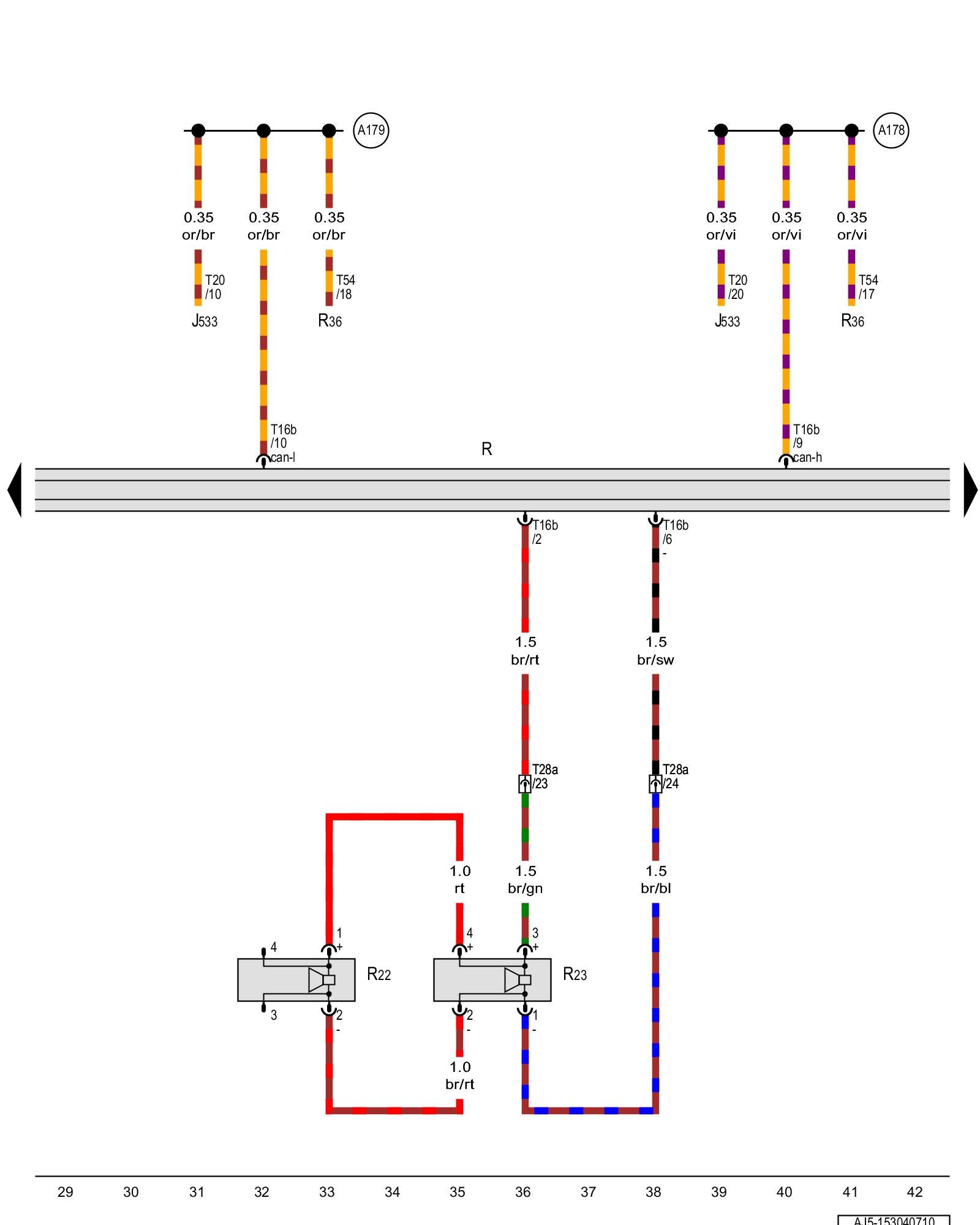

Diagram 153/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio, Right front treble speaker, Right front bass speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J533 - Data bus on board diagnostic interface Locations

R - Radio

R22 - Right front treble speaker

R23 - Right front bass speaker

R36 - Telephone transceiver Telematics System Overview

T16b - 16-pin connector

T20 - 20-pin connector

T28a - 28-pin connector, on the right A-pillar

T54 - 54-pin connector

(A178) - Infotainment CAN bus high connection (in instrument panel wiring harness)

(A179) - Infotainment CAN bus low connection (in instrument panel wiring harness)
