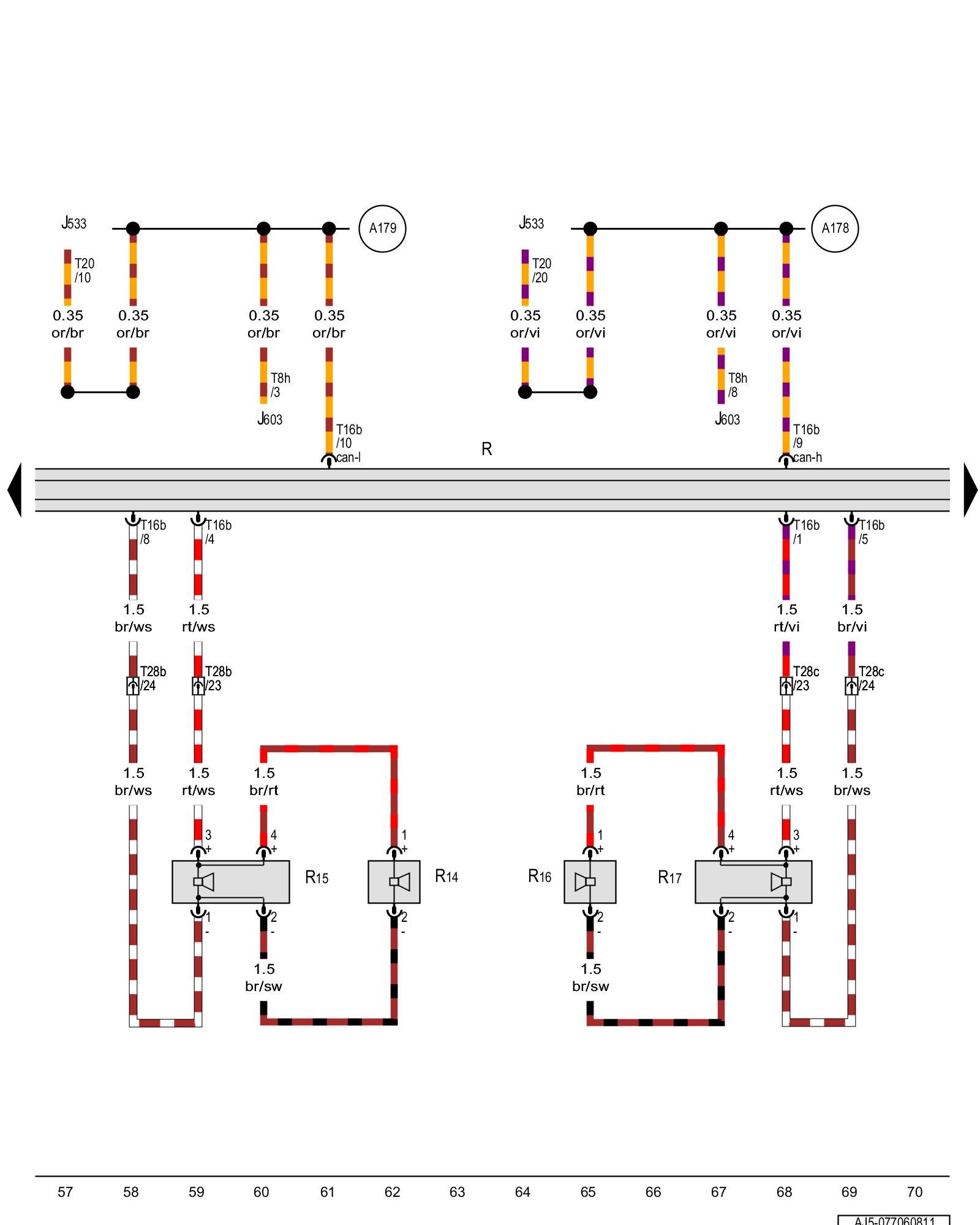

Diagram 77/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Data bus on board diagnostic interface, Radio, Left rear treble speaker, Left rear bass speaker, Right rear treble speaker, Right rear bass speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J533 - Data bus on board diagnostic interface Locations

J603 - Vehicle location recognition control module

R - Radio

R14 - Left rear treble speaker

R15 - Left rear bass speaker

R16 - Right rear treble speaker

R17 - Right rear bass speaker

T8h - 8-pin connector

T16b - 16-pin connector

T20 - 20-pin connector

T28b - 28-pin connector

T28c - 28-pin connector

(A178) - Infotainment CAN bus high connection (in instrument panel wiring harness)

(A179) - Infotainment CAN bus low connection (in instrument panel wiring harness)
