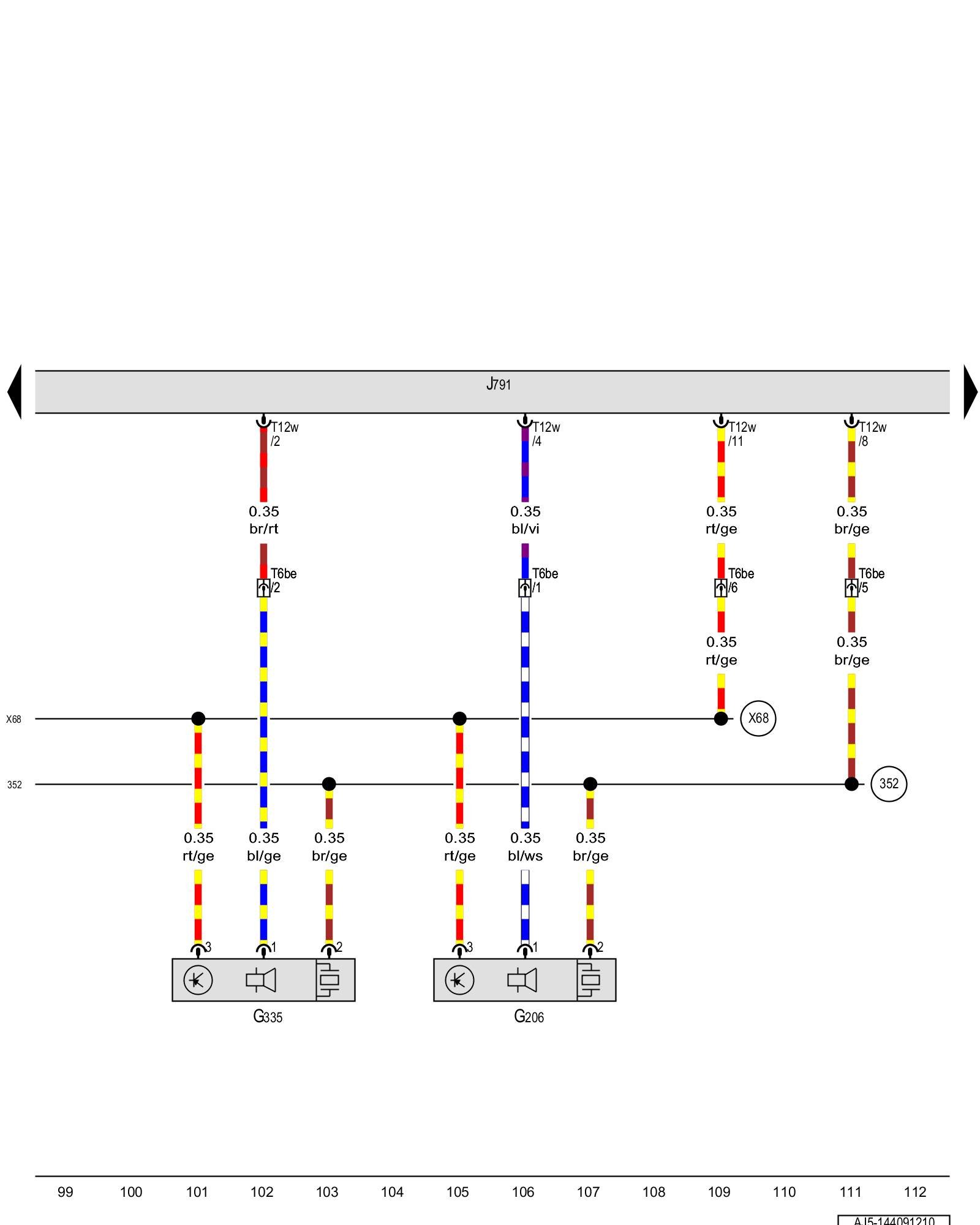

Diagram 144/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Right rear parking aid sensor, Right rear inner parking aid sensor, Parallel parking assistance control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G206 - Right rear parking aid sensor Parking Aid System Overview Parking Sensors : Rear (G203, G204, G205, G206)

G335 - Right rear inner parking aid sensor Parking Aid System Overview

J791 - Parallel parking assistance control module, near the relay carrier Locations Parallel Parking Assistance Control Module -J791-

T6be - 6-pin connector

T12w - 12-pin connector

(352) - Parking aid ground connection (in rear bumper wiring harness)

(X68) - Parking aid connection (in rear bumper wiring harness)
