Diagram 144/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Parallel parking assistance button, Parallel parking assistance control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

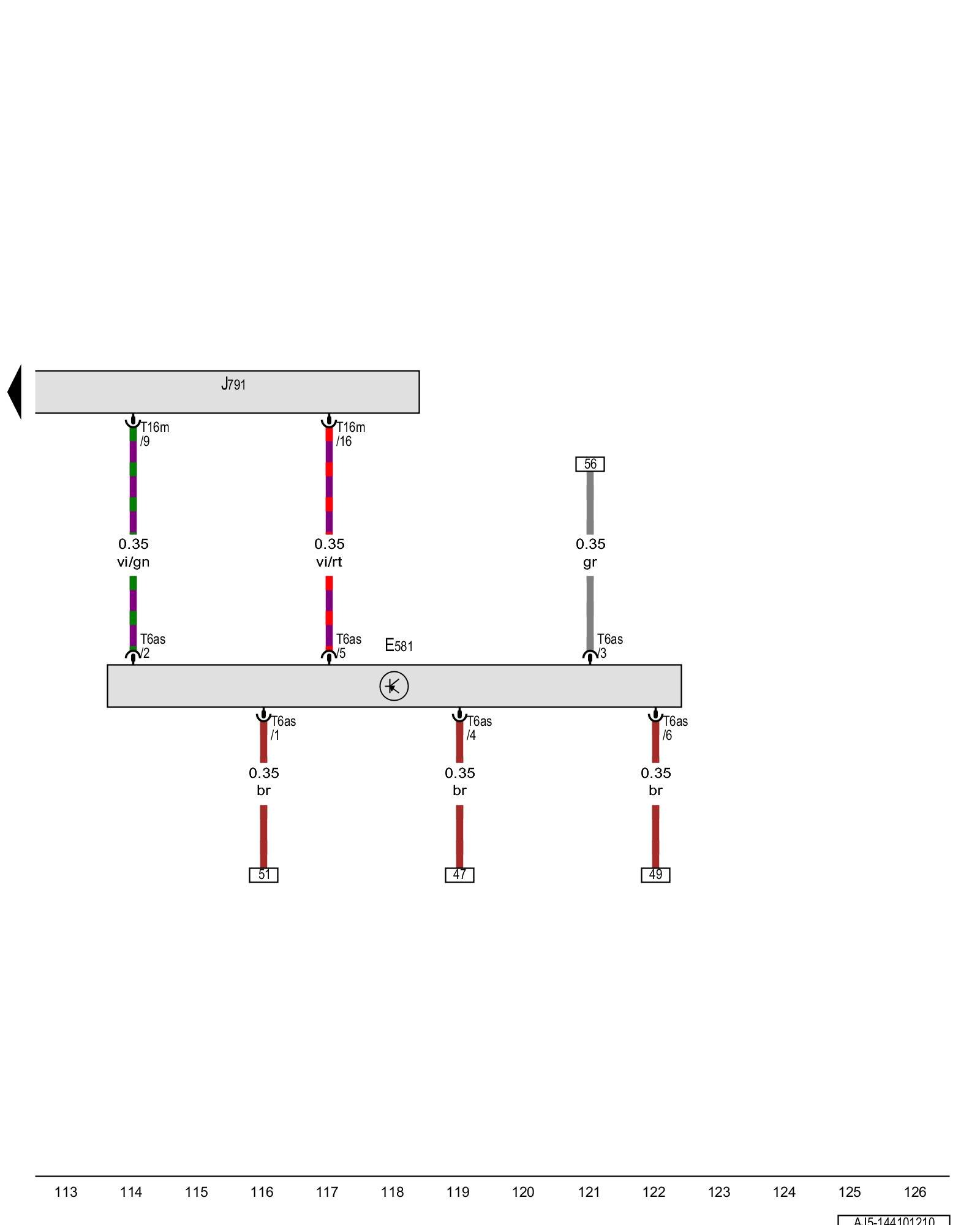

E581 - Parallel parking assistance button Parallel Parking Assistance Button -E581-

J791 - Parallel parking assistance control module, near the relay carrier Locations Parallel Parking Assistance Control Module -J791-

T6as - 6-pin connector

T16m - 16-pin connector

Previous Diagram 144/9 (Tracks 99-112)

Next Diagram 144/11 (Tracks 127-140)
