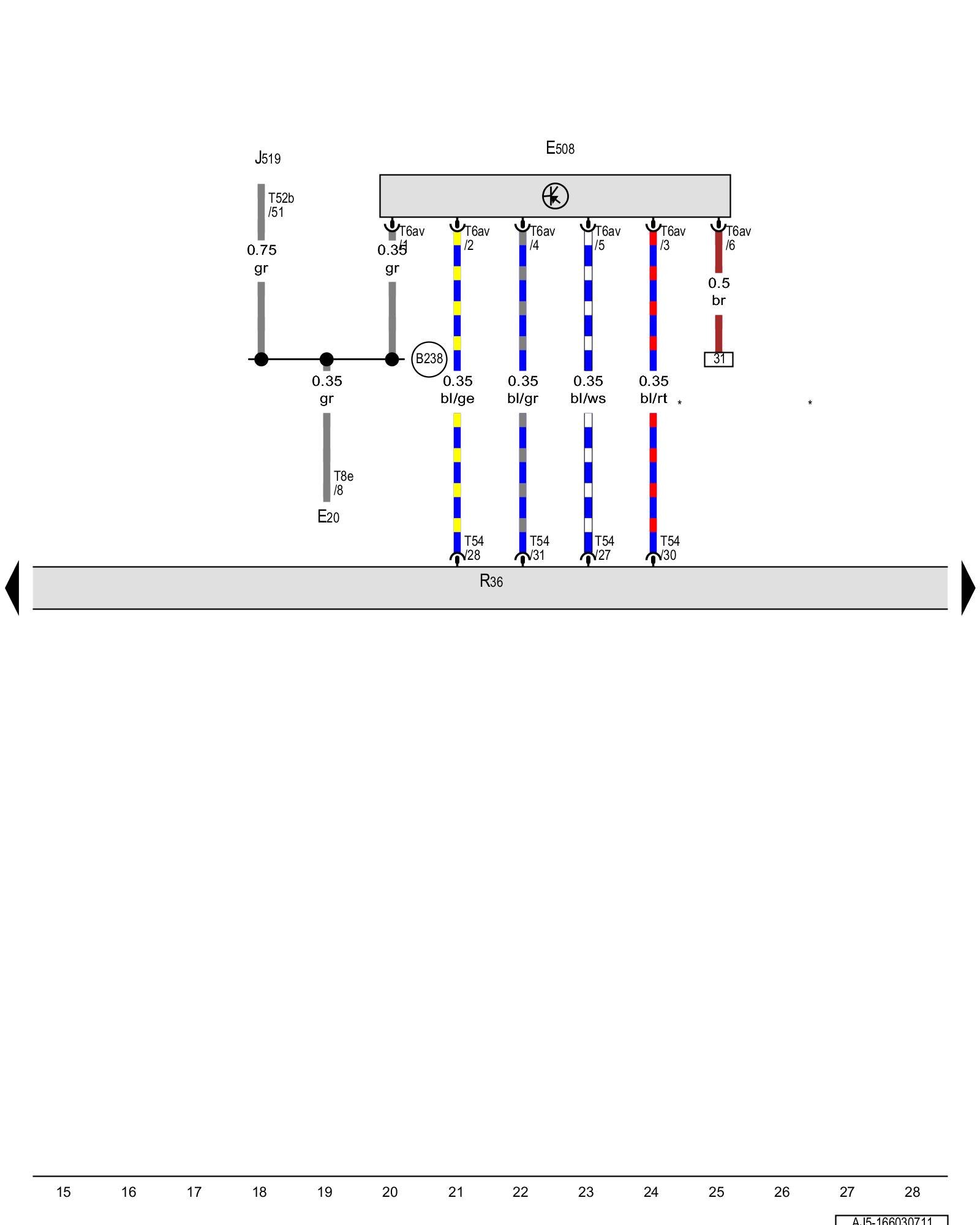

Diagram 166/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Telephone transceiver





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E20 - Instrument panel and switch illumination dimmer switch

E508 - Cellular telephone preparation control head

J519 - Vehicle electrical system control module

R36 - Telephone transceiver Telematics System Overview

T6av - 6-pin connector

T8e - 8-pin connector

T52b - 52-pin connector

T54 - 54-pin connector

(B238) - Positive connection 2 (58b) (in interior wiring harness)

* - Through December 2010
