Parallel Parking Assistance Control Module -J791-






Parking Aid System

Parallel parking assistance control module -J791-



16 pin

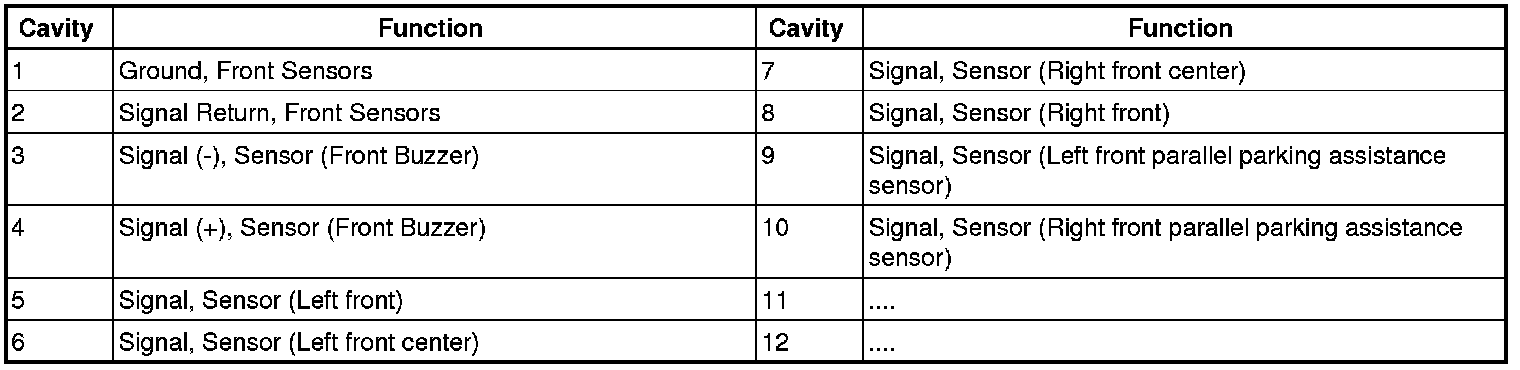

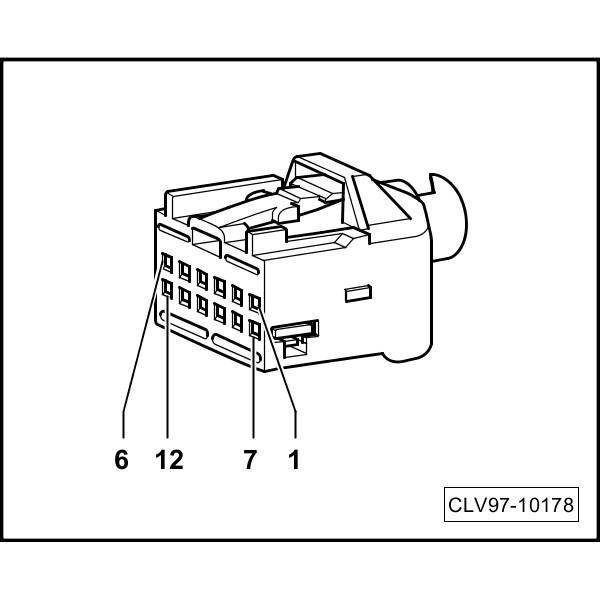

12 pin

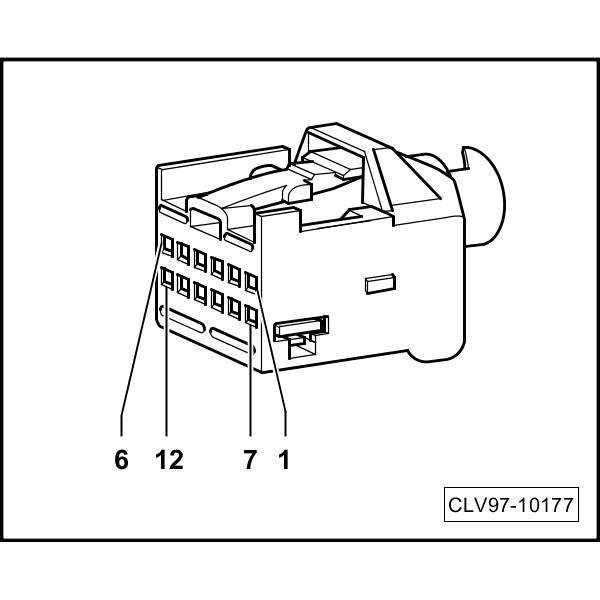

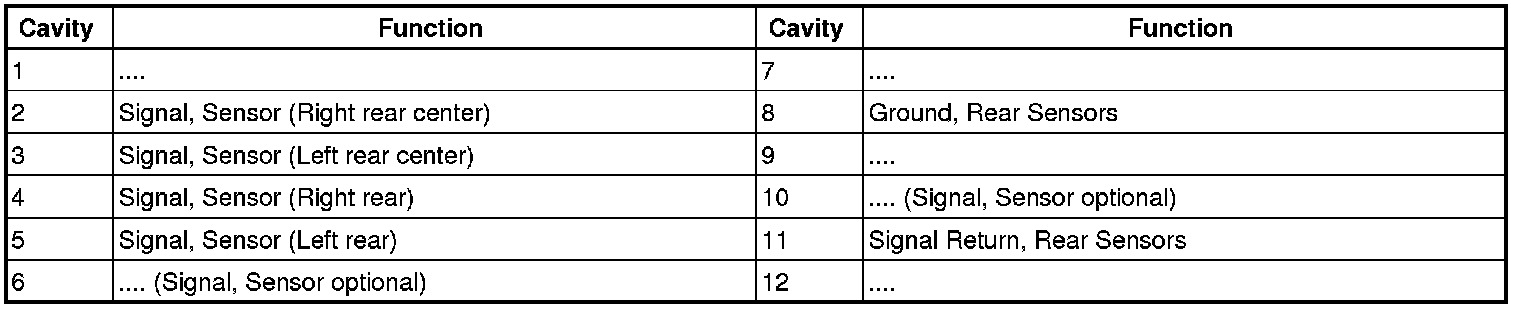

C - 12 pin
