Brake Booster, Installing

Brake Booster, Installing

Special tools, testers and auxiliary items required

• Hose clamps (3093)

• Hose clamps (3094)

• Torque wrench (V.A.G 1331)

• Brake filler/bleeder unit (V.A.G 1869)

• Brake filler/bleeder unit suction adapter (V.A.G 1869/4)

• Brake filler/bleeder unit (VAS 5234)

- Installation is performed in the reverse sequence.

Observe the following points when installing:

- Clip brake pedal together with brake booster. Refer to => [ Brake Pedal and Brake Booster, Connecting ] Brake Pedal and Brake Booster, Connecting.

- Install and connect the battery.

- Bleed brake system. Refer to => [ Brake System, Bleeding ] Brake System, Bleeding.

- Bleed the clutch after installing.

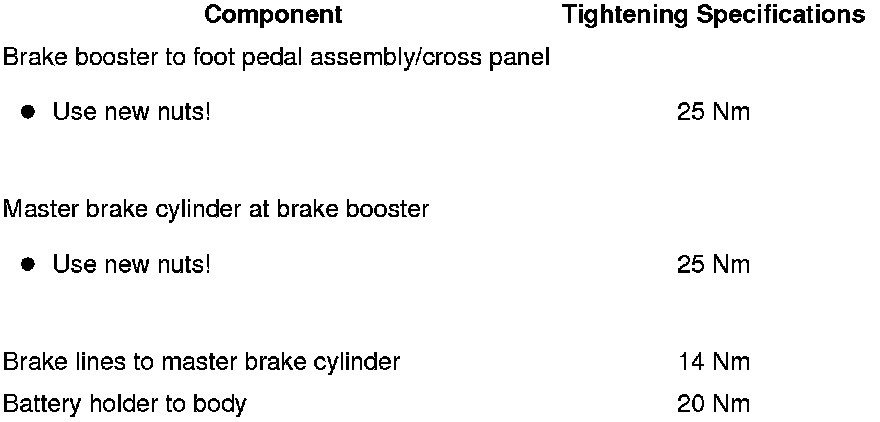

Tightening Specifications
