Inner Door Seal

Inner Door Seal

• The following describes removing and installing the right inner door seal only. Removing and installing the left inner door seal is identical.

Removing






- Pull off inner door seal from body flange.

Installation

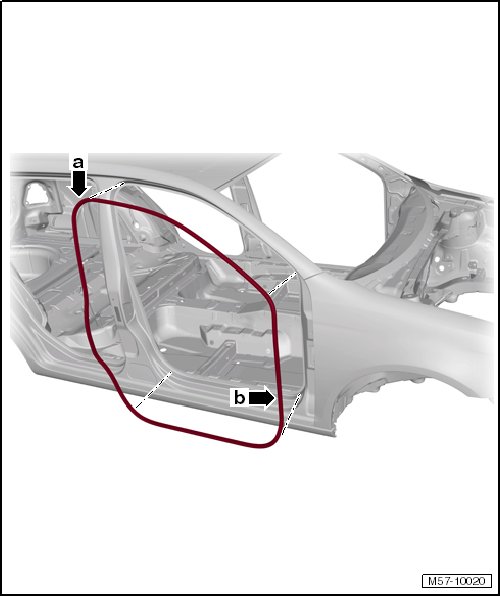

- Align inner door seal with vulcanized point - arrow b - at the height of the lower hinge.

- Start installation of inner door seal in upper radius - arrow a - of door cutout.
