Lumbar Adjustment Lever, Jetta from MY 2010 and Golf Wagon from MY 2010

Lumbar Adjustment Lever, Jetta from MY 2010 and Golf Wagon from MY 2010

The lumbar adjustment lever is an option on the following seats:

• Front Seats with Manual Height Adjustment

• Passenger Seat with Pass-Through

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

- Remove the lever from the shaft.






Installing

- Install in reverse order of removal.

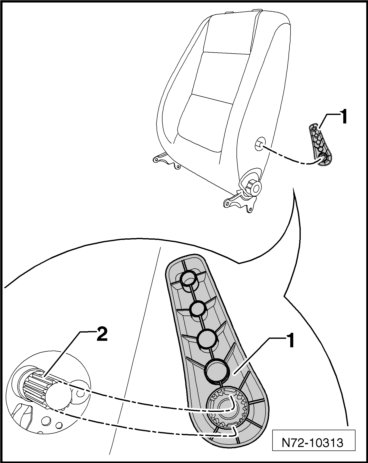

• Make sure the splines in the lumbar adjustment lever - 1 - align with the splines on the shaft - 2 -.
