Front Sunroof Glass Panel Tilt Mechanism and Cable

Front Sunroof Glass Panel Tilt Mechanism and Cable

Removing

- Remove the front glass sunroof panel. Refer to => [ Glass Panel ] Glass Panel.

- Remove the rear glass sunroof panel. Refer to => [ Rear Glass Panel ] Rear Glass Panel.

- Remove the assembly frame from the vehicle. Refer to => [ Assembly Frame ] Assembly Frame.

- Remove sunroof motor. Refer to => [ Sunroof Motor ] Sunroof Motor.

- Remove the rear lid from the assembly frame. Refer to => [ Rear Lid ] Rear Lid.

Push the tilt mechanism to the rear after removing the rear lid.


Before removing the cables, note their position to avoid making a mistake when re-installing.

The tilt mechanism may not be pulled or pushed on the guide rail.

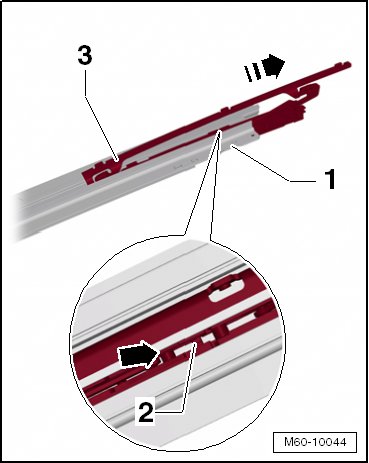

- Press the glass sunroof panel tilting mechanism only on those guiding slot locations - arrow - - 2 -, and not on the rails - 3 -.






The tilt mechanism opens when pushed.

- Slide the tilt mechanism back to the end of the guide rail - 1 - using a suitable screwdriver.

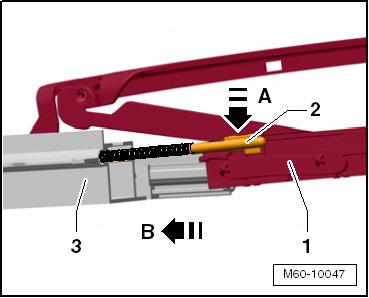

- Disengage the cable - 2 - from the slider - 1 - - arrow A -.






- Remove the slider - 1 - from the guide rail - 3 - - arrow B -.

- Remove the cable - 2 - from the guide rail - 3 -.

Installation

• Clean the guide rails only if they are very dirty.

• Use cleaner (D 009 401 04)

• Lubricate the guide rails in the sliding areas using lithium grease (G 052 147 A2). Refer to => [ Maintenance and Care ] Maintenance and Care.

• Do not lubricate the cables.

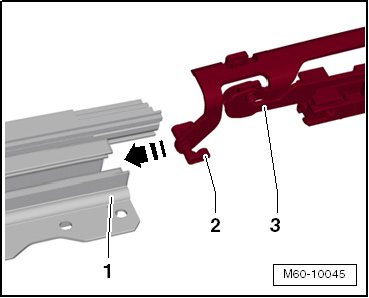

- Slide the tilt mechanism - 3 - into guide rail - 1 -.






• Make sure the slider - 2 - points toward the rear when sliding the it into the upper portion of guide rail - 1 -.

- Slide the cable - 2 - into the guide rail - 3 - - arrow B -.

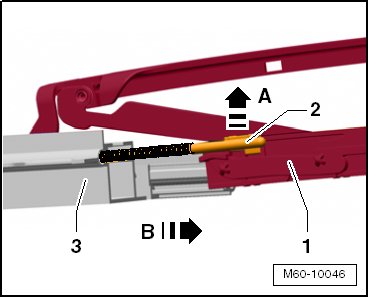

- Engage the cable - 2 - in the slider - 1 - - arrow A -.

• The tilt mechanism may not be pulled or pushed on the guide rail.

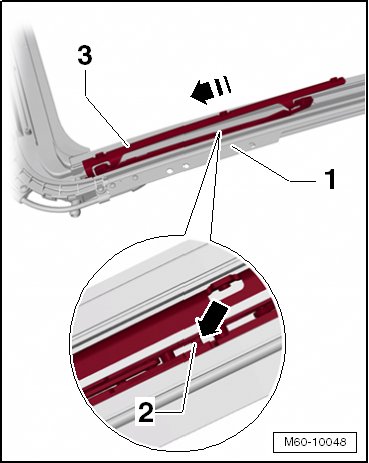

- Press the tilting mechanism only on those guiding slot locations - arrow - - 2 -, and not on the rails - 3 -.






- Push the tilting mechanism on both sides all the way forward until it has completely lowered.

- Install the rear lid on the assembly frame.

- Install the sunroof motor.

- Install the assembly frame on to the vehicle.

- Install the rear glass sunroof panel. Refer to => [ Rear Glass Panel ] Rear Glass Panel

- Install the front glass sunroof panel. Refer to => [ Glass Panel ] Glass Panel

- After completing all the work, perform a panorama sun roof adaptation. Refer to => [ Adaptation Panorama Sunroof ] Adaptation Panorama Sunroof.
