Roof Rail, Roof Rail Assembly Overview

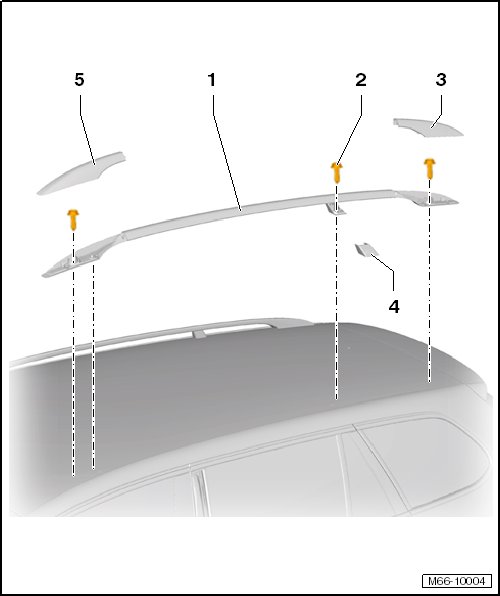

Roof Rail Assembly Overview






1 Roof rail

• Removing and Installing, refer to => [ Roof Rail ] Roof Rail

2 Bolt

• 3 pieces per side

• 20 Nm

3 Rear roof rail cover

4 Center roof rail cover

5 Front roof rail cover
