Roof Rail

Roof Rail

Removing

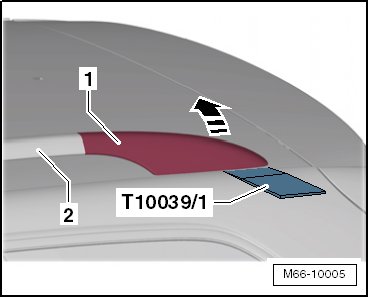

- Using the Trim Removal Wedge (T10039/1) , pry the front and rear roof rail cover - 1 - in the - direction of the arrow -.

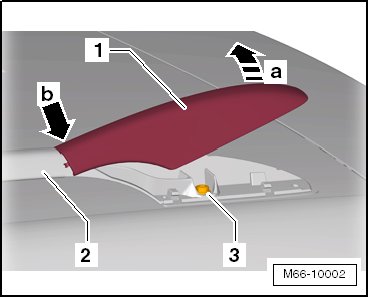

- Pry the front and rear roof rail cover - 1 - in the direction of - arrow A - and press it in the direction of - arrow B -.






- Remove the roof rail cover - 1 -.

- Remove the bolt - 3 - at the front and rear roof rail mount - 2 -.

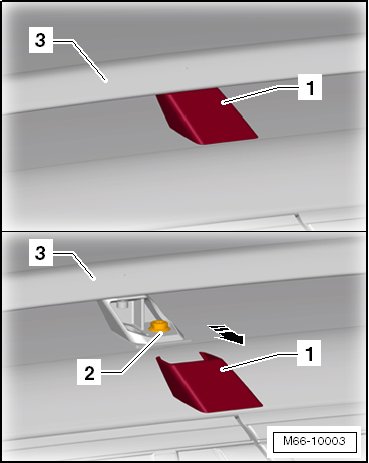

- Remove the center cover - 1 - from the roof rail - 3 - in the - direction of the arrow -.






- Remove the bolt - 2 - on the center roof rail mount - 3 -.

Installation

To install, perform the steps used for removal in reverse order.

Tightening specification: 20 Nm

Check for the roof rail cover for damage and replace if necessary.
