Power Mirror Motor: Service and Repair

Adjusting Unit with Exterior Rearview Mirror Motor

• Removing and installing is described only for the left adjusting unit with motor. Removing and installing right adjusting unit with motor is derived accordingly from this.

Removing

- Remove mirror glass. Refer to => [ Mirror Glass ] Mirror Glass.

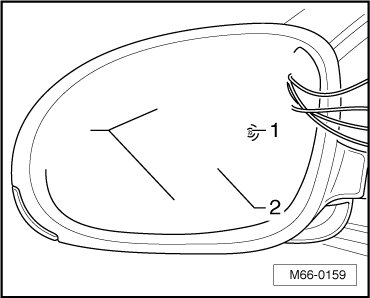

- Remove the bolts - 1 -.

- Remove adjusting unit with motor - 2 - and disconnect harness connector.

Installation

To install, perform the steps used for removal in reverse order.

Tightening specifications of bolts for adjusting unit with motor: 1 Nm

Then perform a function test.
