Storage Compartment and Ashtray, Jetta from MY 05 and Golf Wagon from MY 07

Storage Compartment and Ashtray, Jetta from MY 05 and Golf Wagon from MY 07

Removing

- Switch off the ignition.

Vehicles with automatic transmission

- Loosen boot from cover

Vehicles with manual transmission and Direct Shift Gearbox (DSG)

- Loosen boot from cover.

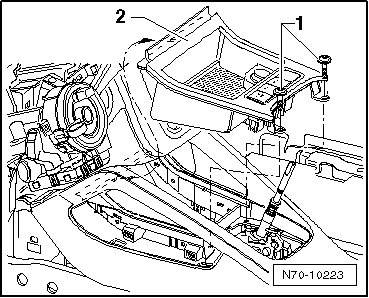

- Remove the two bolts - 1 - (1.5 Nm).






- Remove storage compartment - 2 - from center console and (depending on vehicle equipment) disconnect wiring harnesses.

• An ashtray may be installed instead of the storage compartment, removal is the same.

Installing

- Install in reverse order of removal.
