Heating and A/C Control Trim, Jetta from MY 2010 and Golf Wagon from MY 2010

Heating and A/C Control Trim, Jetta from MY 2010 and Golf Wagon from MY 2010

Removing

- Remove the trim in the center of the instrument panel (Jetta from MY 10, Golf Wagon from MY 10). Refer to => [ Instrument Panel Center Trim, Jetta from MY 2010 and Golf Wagon from MY 2010 ] Instrument Panel Center Trim, Jetta from MY 2010 and Golf Wagon from MY 2010.

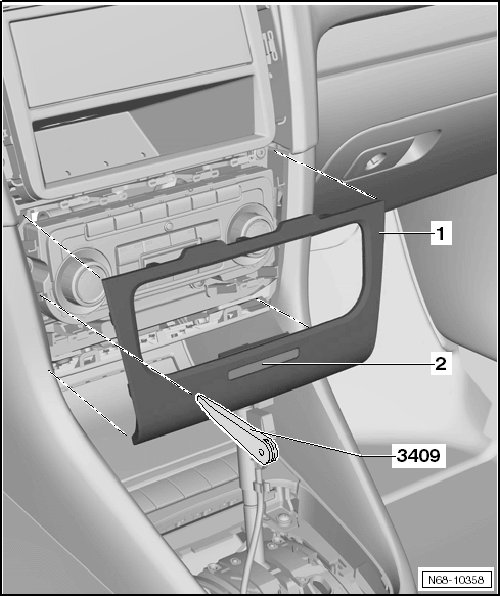

- Pry the trim - 1 - out of its mounts in the instrument panel using the trim removal wedge (3409).

- Disconnect the front passenger airbag disabled indicator lamp (K145) wiring harness - 2 - and remove the trim.






Installing

- Install in reverse order of removal.
