Storage Compartment Cover Mat, Wagon, (Level Luggage Compartment Floor)

Storage Compartment Cover Mat, Wagon, (Level Luggage Compartment Floor)

Removing

Vehicles with level luggage compartment floor:

- Remove the luggage compartment floor trim. Refer to => [ Luggage Compartment Floor Cover, Wagon, (Level Luggage Compartment Floor) ] Luggage Compartment Floor Cover, Wagon, (Level Luggage Compartment Floor).

All vehicles:

- Remove the side cushion:

• with rear side airbags => [ Side Upholstery with Side Airbag ] Side Upholstery with Side Airbag.

• without rear side airbags => [ Side Upholstery without Side Airbag ] Side Upholstery without Side Airbag.

- Remove luggage compartment side trim. Refer to => [ Luggage Compartment Side Trim, Wagon ] Luggage Compartment Side Trim, Wagon.

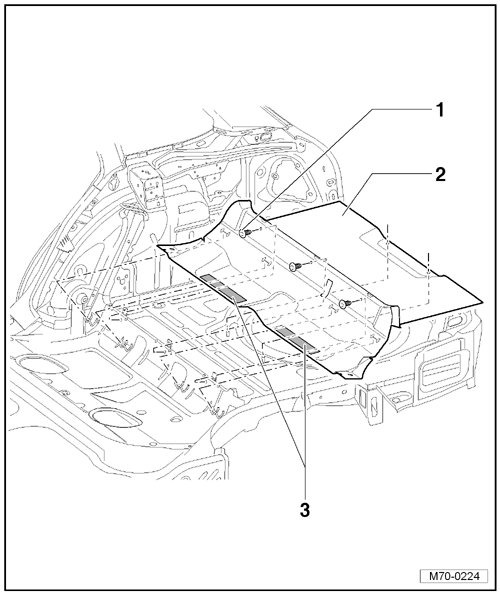

- Remove the three plugs - 1 -.

- Loosen the cover mat - 2 - carefully from the body floor at the adhesive strips - 3 -.

- Remove the cover mat from the vehicle.






Installing

- Install in reverse order of removal.
