Luggage Compartment Floor Carpet, Wagon, (Level Luggage Compartment Floor)

Luggage Compartment Floor Carpet, Wagon, (Level Luggage Compartment Floor)

Removing

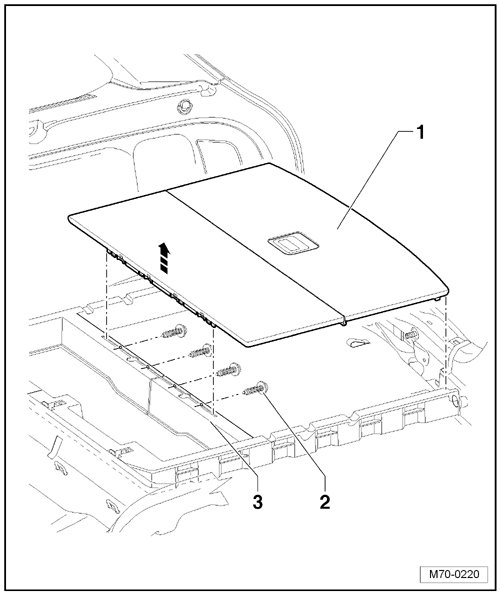

- Fold the luggage compartment floor covering - 1 - and up and remove the four bolts - 2 - (2 Nm).

- Pull the luggage compartment floor covering - 1 - in - direction of arrow - out of floor trim - 3 -.






Installing

- Install in reverse order of removal.
