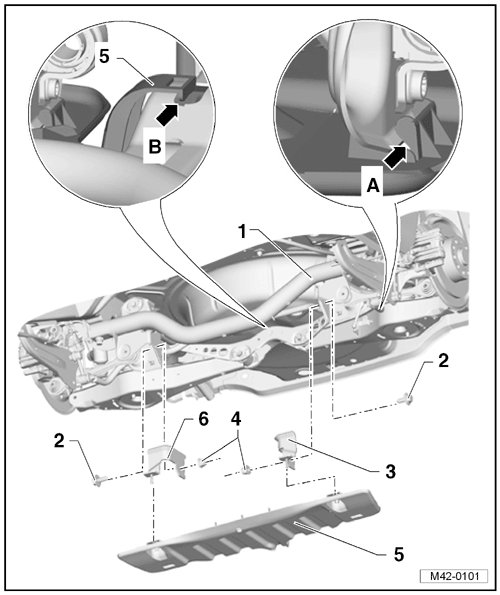

Subframe Trim Panel Assembly Overview, BlueMotion

Subframe Trim Panel Assembly Overview, BlueMotion






1 Subframe

2 Bolt

3 Angle

• With pop rivet.

4 Nut

• 20 Nm

5 Trim Panel

• Tighten the nuts to 2 Nm.

• Removing and installing, refer to => [ Subframe Trim Panel ] Subframe Trim Panel.

• When installing, the trim panel must be attached from underneath to the subframe => [ (Item 1) Subframe ] - arrow A - and attached from the top - arrow B -.

6 Angle

• With pop rivet.
