Golf Wagon (AJ5) (CANADA) L4-2.0L DSL Turbo (CJAA)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Exterior Moulding / Trim
>>
License Plate Bracket
>>
Service and Repair
>>
Rear
Rear

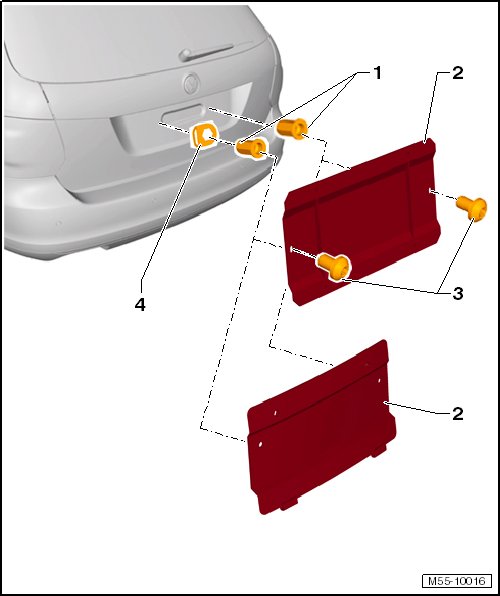

License Plate Holder
1
Internally threaded pop rivet
•
Quantity: 2
2
License plate holder
•
Assignment, refer to Electronic Parts Catalog
3
Bolt
•
Quantity: 2
•
4 Nm
4
Bracket
•
If installed
