Trunk / Liftgate Striker: Service and Repair

Striker Pin






Removing

- Remove the lock carrier cover.

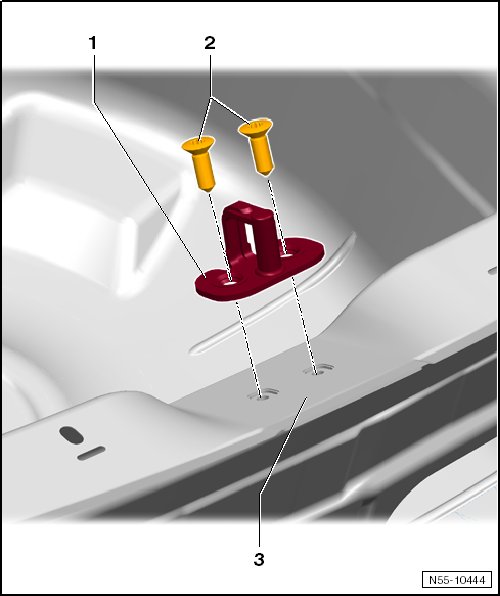

- Remove the bolts - 2 - and remove striker pin - 1 -.

Installation

- Install the catch - 1 - on the lock carrier - 3 -.

- Tightening specifications: Bolts - 2 - 23 Nm.

- Adjust striker pin.
