Window Frame Trim, Wagon

Window Frame Trim, Wagon

Removing

- Remove rear lid trim. Refer to => [ Rear Lid Trim, Wagon ] Rear Lid Trim, Wagon.

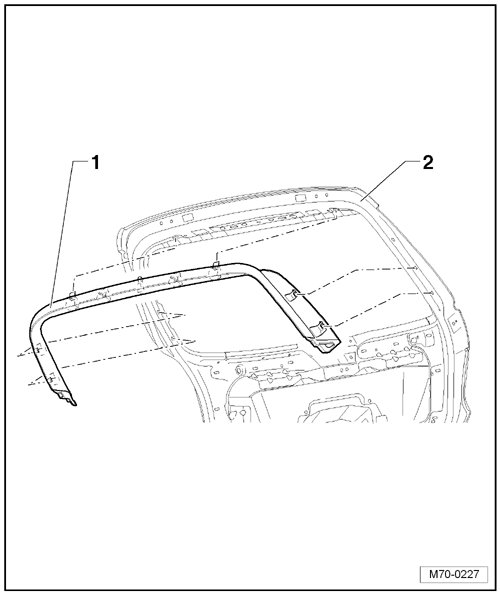

- Using Pliers (3392) , loosen the sides of the trim - 1 - from the mounts in the rear lid - 2 -.

- Pull trim on upper edge out of mounts.






Installing

- Install in reverse order of removal.

• Before installing, check securing clips for damage and replace if necessary.
