Rear Lock Carrier Cover, Wagon

Rear Lock Carrier Cover, Wagon

Removing

Vehicles with lowered luggage compartment floor:

- Remove the luggage compartment floor covering from the vehicle.

Vehicles with level luggage compartment floor:

- Fold the luggage compartment floor covering forward.

- Remove the compartment trim from the vehicle.

All vehicles:

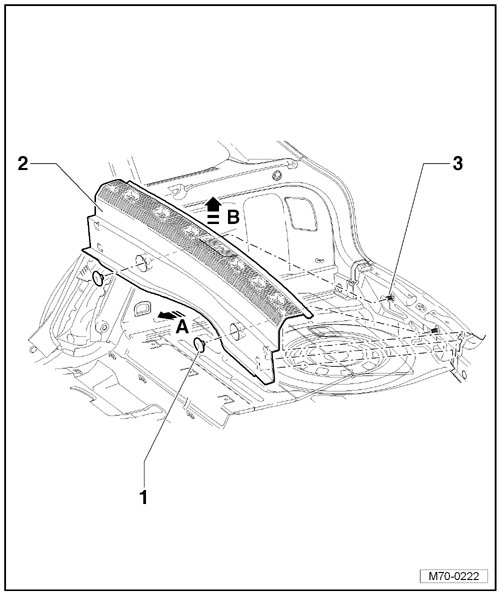

- Remove the mounting clips - 1 - from threaded pin of body.

- Loosen the cover - 2 - in the lower area in - direction of arrow A - from the body threaded pins - 3 -.

- Remove the cover - 2 - upward from the lock carrier in - direction of arrow B -.






Installing

- Install in reverse order of removal.

• Before installing, inspect the securing clips for damage and replace if necessary.
