Luggage Compartment Side Trim, Wagon

Luggage Compartment Side Trim, Wagon

• The following describes removing and installing on the right side of the vehicle. Removal and installation for the left-hand side is performed in the same manner.

Removing

- Remove cover for rear lock carrier. Refer to => [ Rear Lock Carrier Cover, Wagon ] Rear Lock Carrier Cover, Wagon.

Vehicles with level luggage compartment floor:

- Remove the luggage compartment floor trim. Refer to => [ Luggage Compartment Floor Cover, Wagon, (Level Luggage Compartment Floor) ] Luggage Compartment Floor Cover, Wagon, (Level Luggage Compartment Floor).

All vehicles:

- Remove backrest. Refer to => [ Backrest ] Backrest.

- Remove the side cushion:

• with rear side airbags => [ Side Upholstery with Side Airbag ] Side Upholstery with Side Airbag.

• without rear side airbags => [ Side Upholstery without Side Airbag ] Side Upholstery without Side Airbag.

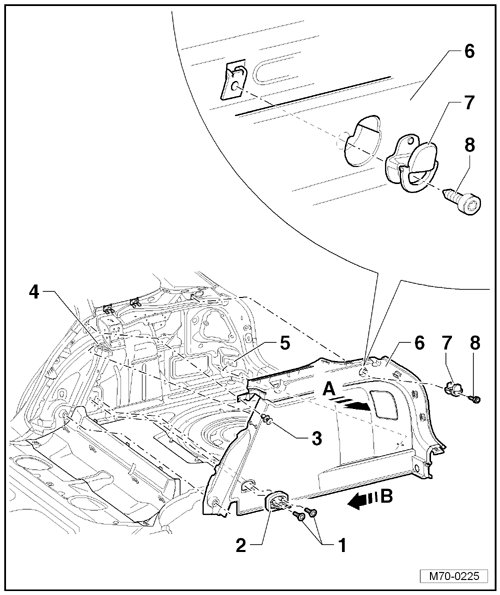

- Remove the two bolts - 1 - (8 Nm) and remove the anchor point - 2 -.

- Remove the securing clip - 3 -.

- Remove bolt - 8 - (4.5 Nm) and remove coat hook bracket - 7 -.

- Pull the trim - 6 - inward - arrow A - out of the retainers in the body.

- Pull the trim - 6 - forward - arrow B - over the backrest lock bracket - 4 - and tie-downs - 5 -.

- Depending on vehicle equipment, disconnect the corresponding wiring harnesses and remove trim from vehicle.






Installing

- Install in reverse order of removal.

• Before installing, inspect the securing clips for damage and replace if necessary.
