Liftgate Window Glass Weatherstrip: Service and Repair

Outer Window Recess Seal

Removing

- Remove the door window. Refer to => [ Rear Door Window ] Rear Door Window.

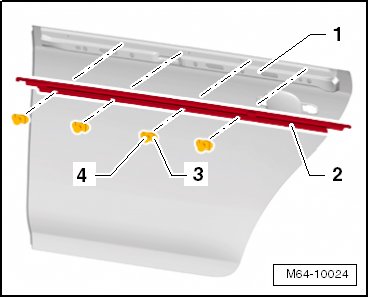

- Using a small screwdriver, pry the spreader pin - 4 - out of the clip - 3 -.






- Remove the four clips - 3 - from the window recess seal - 2 -.

- Remove the window shaft seal - 2 - upward from the outer door panel - 1 -.

Installation

To install, perform the steps used for removal in reverse order.
