Rear Door Assembly Overview

Rear Door Assembly Overview

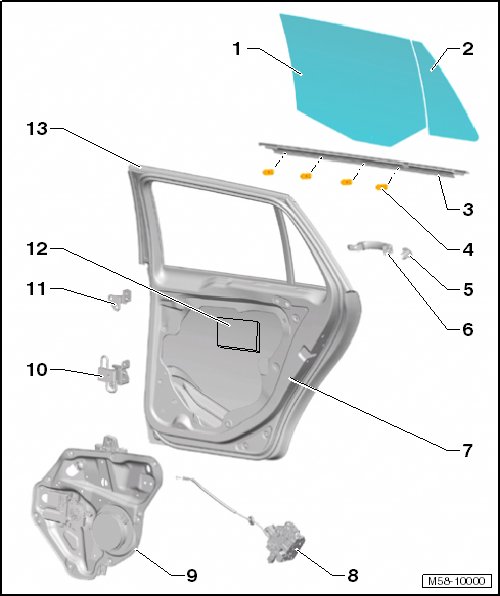

1 Door window

• Removing and Installing, refer to => [ Rear Door Window ] Rear Door Window

2 Fixed door window

• Removing and Installing, refer to => [ Fixed Door Window ] Fixed Door Window

3 Outer window recess seal

• Removing and Installing, refer to => [ Outer Window Recess Seal ] Outer Window Recess Seal

4 Clips

• Quantity: 4

• To secure the outer window shaft seal

5 Housing

• Removing and Installing, refer to => [ Housing ] Housing

6 Door handle

• Removing and Installing, refer to => [ Door Handle ] Door Handle

7 Door

• Removing and Installing, refer to => [ Rear Door ] Rear Door

• Adjusting, refer to => [ Door Adjustment ] Rear Door

8 Door lock

• Removing and Installing, refer to => [ Door Lock ] Door Lock

9 Subframe

• With window regulator

• Removing and Installing, refer to => [ Subframe ] Subframe

10 Bottom door hinge

• Overview, refer to => [ Door Hinge Assembly Overview ] Rear Door

11 Upper door hinge

• Overview, refer to => [ Door Hinge Assembly Overview ] Rear Door

12 Insulation

• Self-adhesive

• To adhere, insulation must be preheated and then pressed on firmly

13 Window guide

• Removing and Installing, refer to => [ Window Guide ] Window Guide
