Rear Door Panel: Service and Repair

Rear Door Trim

• The following describes removing and installing the trim panel on the right rear door. The same instructions apply for removal and installation of trim for the left rear door.

Removing

- Switch off the ignition.

only vehicles with manual window regulators

- Remove window crank. Refer to => [ Window Crank ] Window Crank

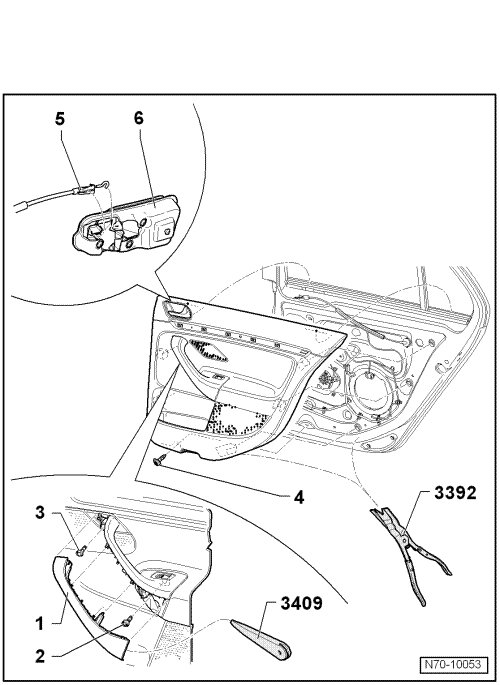

- Pry upper section of grip shell - 1 - out of pull handle in door trim using wedge (3409).

- Disconnect the window regulator switch wiring harness from the door trim panel.

- Remove bolts - 2 - and - 3 - (1.5 Nm).

- Remove the bolt - 4 - (2 Nm).

- Disengage door trim from mounts in lower area using disassembly pliers (3392).

- Disengage door trim from mounts on the sides using disassembly pliers (3392).

- Pull door trim vertically upward out of window shaft seal.

- Depending on vehicle equipment, disconnect wiring harnesses from door trim.

- Disengage the cable - 5 - from interior door mechanism - 6 -.






Installing

- Install in reverse order of removal.

• Before installing, inspect the securing clips for damage and replace if necessary.
