Side Guide Assembly Overview

Side Guide Assembly Overview

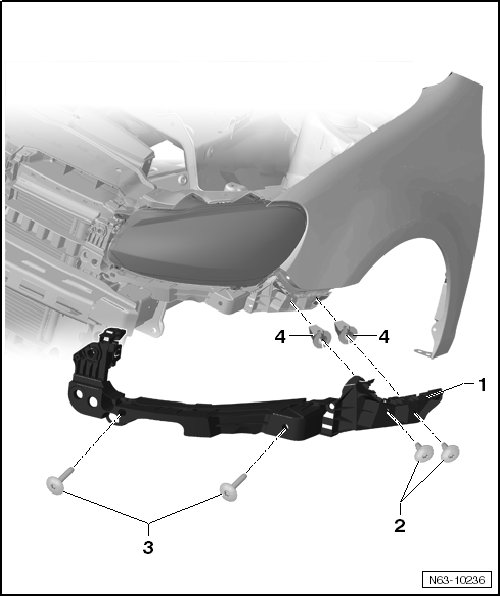

• The illustration shows a left fender. The right fender is identical.






1 Side guide

• Left and right

2 Bolt

• Quantity: 2

• Tightening specification: 2 Nm

3 Bolt

• Quantity: 2

• Tightening specification: 5 Nm

4 Expanding nut

• Quantity: 2
