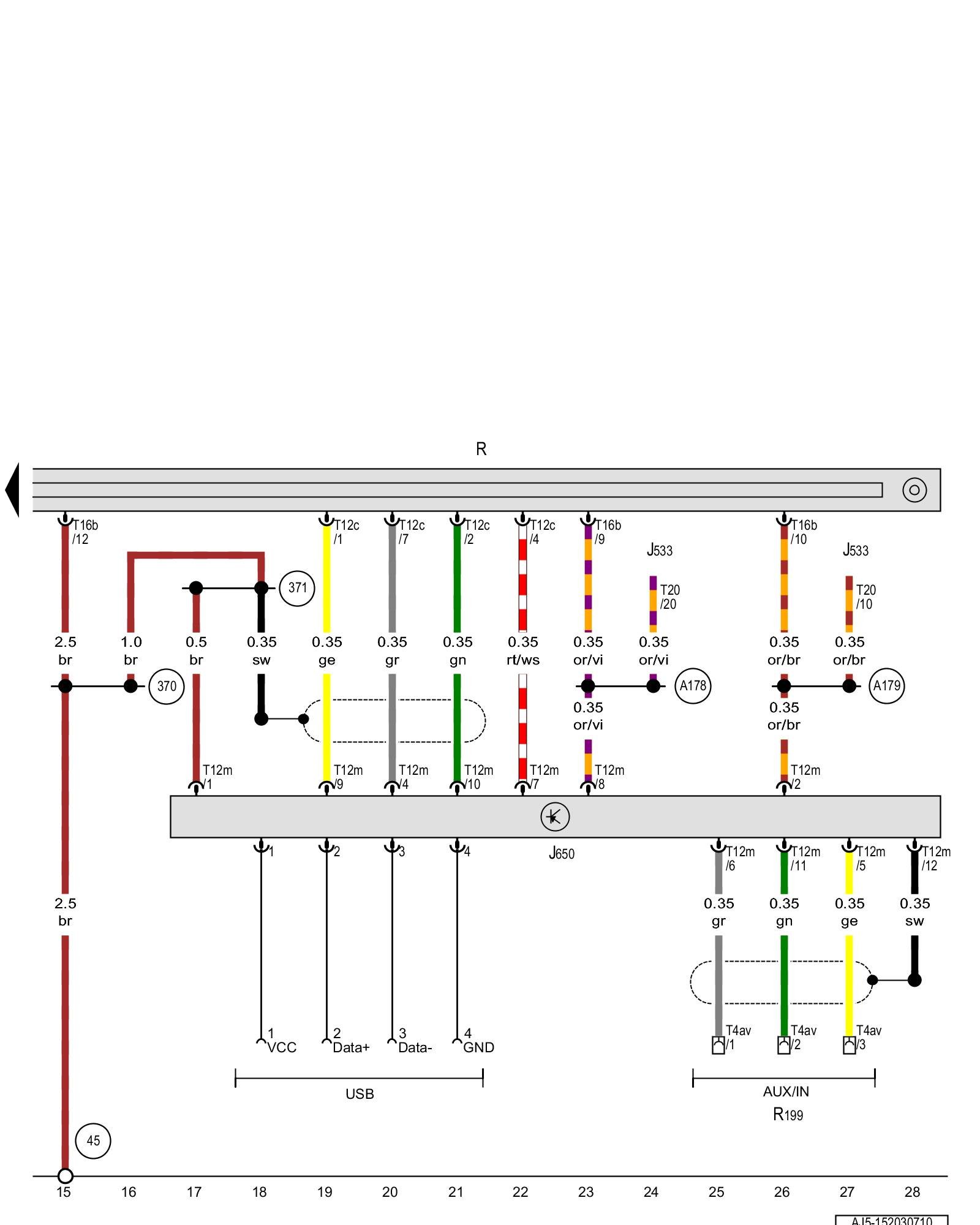

Diagram 152/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Multimedia system control module, Radio, External audio source connection





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J533 - Data bus on board diagnostic interface Locations

J650 - Multimedia system control module Premium 8 Sound System Overview

R - Radio

R199 - External audio source connection RNS 510 Radio Nav System Overview

T4av - 4-pin connector

T12c - 12-pin connector

T12m - 12-pin connector

T16b - 16-pin connector

T20 - 20-pin connector

(45) - Ground connection behind instrument panel, center

(370) - Ground connection 5 (in main wiring harness)

(371) - Ground connection 6 (in main wiring harness)

(A178) - Infotainment CAN bus high connection (in instrument panel wiring harness)

(A179) - Infotainment CAN bus low connection (in instrument panel wiring harness)
