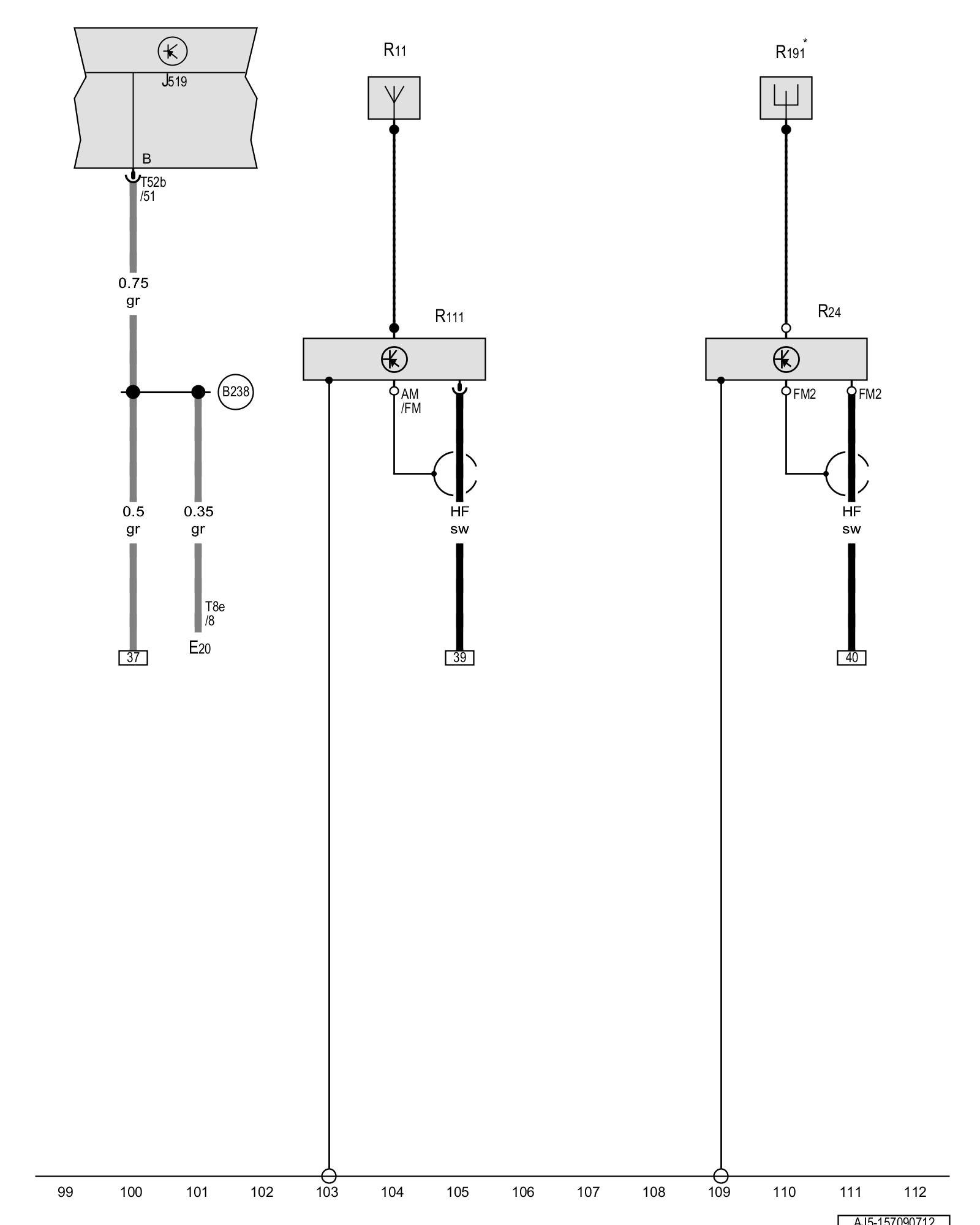

Diagram 157/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Antenna, Antenna amplifier, Antenna amplifier 2, Side window antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E20 - Instrument panel and switch illumination dimmer switch

J519 - Vehicle electrical system control module Locations

R11 - Antenna

R24 - Antenna amplifier Antenna Systems Overview

R111 - Antenna amplifier 2 Antenna Systems Overview

R191 - Side window antenna

T8e - 8-pin connector

T52b - 52-pin connector

(B238) - Positive connection 2 (publication) (in interior wiring harness)

* - Depending on equipment
