Rearview Camera (R189)

Rearview Camera (R189)

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1783)

The rear view camera is installed in the handle button in the rear lid. The rearview camera cannot be removed from the handle button. The handle button must be replaced.


• Switch off the ignition and all electrical consumers.

• Remove the key.

Removing

- Remove the rear lid trim panel.

- Open the wire holder from the wiring harness for the rearview camera near the connectors and remove both wires.

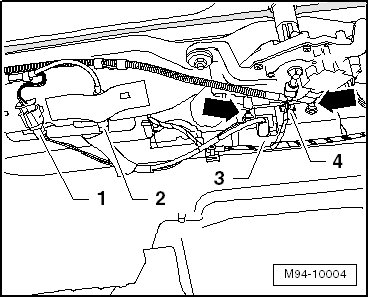

- Disconnect the connectors - 1 - and - 2 -.






- Remove the nuts - arrows -.






- Disconnect the connector - 4 -.

- Remove the button in the handle and the rearview camera - 3 - from the rear lid.

Installing

Install in reverse order of removal. Note the following:

- Tighten the threaded connections to the tightening specifications. Refer to => [ Rear View Camera System Overview ] Rear View Camera System Overview.

- Fasten the rearview camera wires to a wire holder to prevent rattling.

- After installing, clean the rearview camera lens with lint-free cloth.
