Front Door Window Motor: Service and Repair

Front Door Window Regulator Motor

Removing






- Remove front door trim..

- Fix window using adhesive tape so that it does not slip down.

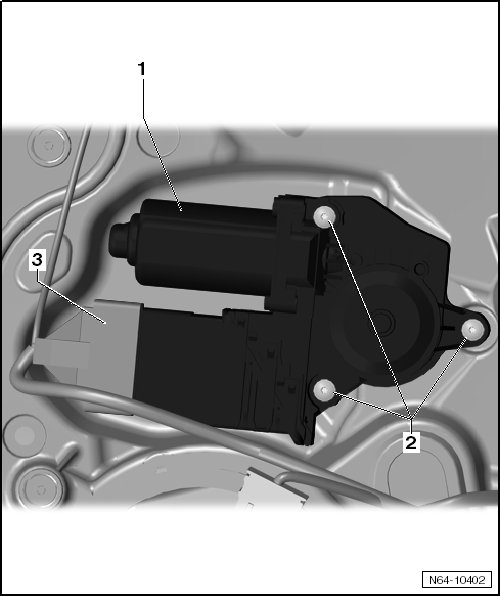

- Disconnect the connector - 3 -.

- Remove the three bolts - 2 -.

- Remove window regulator motor with control module - 1 - from subframe.

Installation


It is necessary to code the additional functions and pinch protection each time a new window regulator motor (door control module) is installed.






- Install the window regulator motor - 1 - and pull door window up and down so that splines are located better between motor and cable drum.

Tightening specification for the bolts - 2 -: 3.5 Nm

- Connect the connectors - 3 -.

- Code the new window regulator motor using the (VAS 5051 A).

- After coding, let the window regulator work in the one-touch up/one-touch down mode and pull the switch for 2 seconds. This way the window regulator recognizes it upper stop.

- Continue by performing the steps used in removal in reverse order.
