Gears, Shafts
Special Tools
Special tools, testers and auxiliary items required
• Sleeve (40-20)
• Sleeve (40-21)
• Thrust Plate (2050)
• Spacers (Vw 540/1 B)
• Tapered Roller Bearing Puller (V.A.G 1582)
• Grip (V.A.G 1582/7)

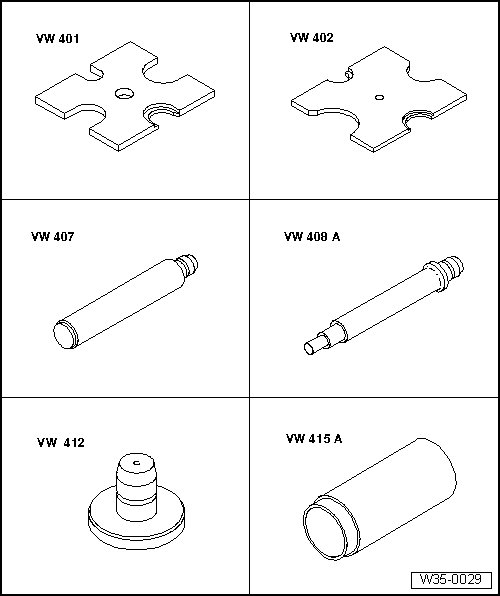

Special tools, testers and auxiliary items required
• Thrust Plate (VW 401)
• Thrust Plate (VW 402)
• Punch (VW 407)
• Punch (VW 408A)
• Thrust Disc (VW 412)
• Tube 60 mm Dia. (VW 415A)

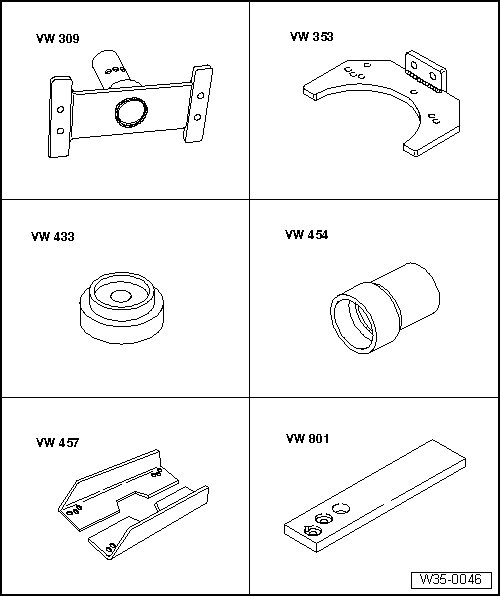

Special tools, testers and auxiliary items required
• Holding Plate (VW 309)
• Transmission Support (VW 353)
• Thrust Pad Con. 8/65 (VW 433)
• Thrust Tube (VW 454)
• Support channels (VW 457)
• Holding Fixture (VW 801)

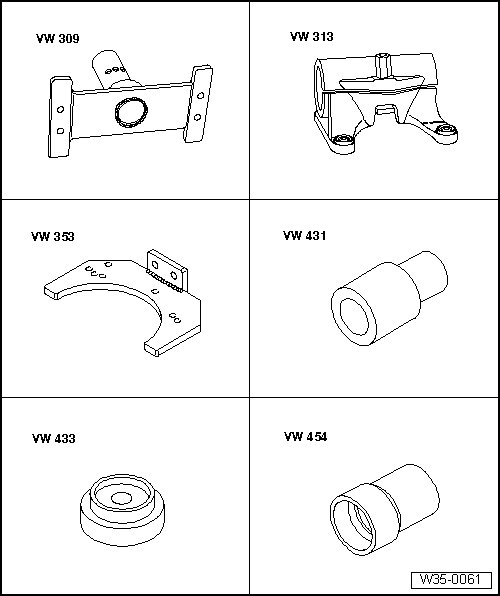

Special tools, testers and auxiliary items required
• Holding Plate (VW 309)
• Holding Fixture (VW 313)
• Transmission support (VW 353)
• Thrust Pad 16.5/28 mm Dia. (VW 431)
• Thrust Pad Con. 8/65 (VW 433)
• Thrust Tube (VW 454)

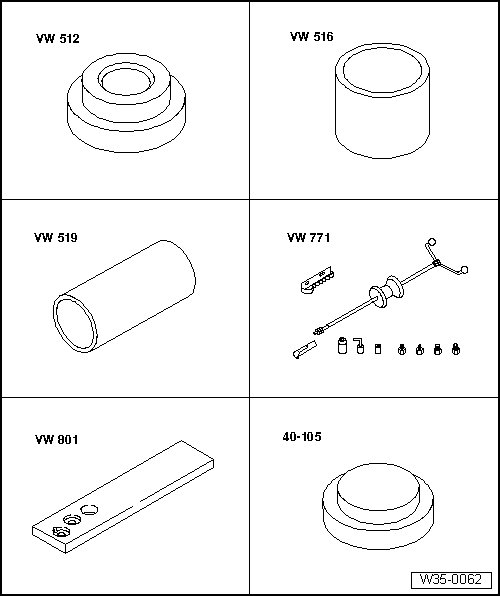

Special tools, testers and auxiliary items required
• Thrust Pad (VW 512)
• Tube 42 mm Dia. (VW 516)
• Sleeve (VW 519)
• Slide Hammer-Complete Set (VW 771)
• Holding Fixture (VW 801)
• Thrust Piece (40-105)
Special tools, testers and auxiliary items required
• Transmission Support (VW 353)
• Dial Gauge Holder (VW 387)
• Punch (VW 407)
• Thrust Pad Con. 8/65 (VW 433)
• Installation Arbor (VW 792)
• Holding Fixture (VW 801)
Special tools, testers and auxiliary items required
• Thrust Pad 16.5/28 mm Dia. (VW 431)
• Thrust Tube (VW 455)
• Thrust Pad (VW 510)
• Tube 42 mm Dia. (VW 516)
• Sleeve (VW 519)
• Thrust Pad (30-11)

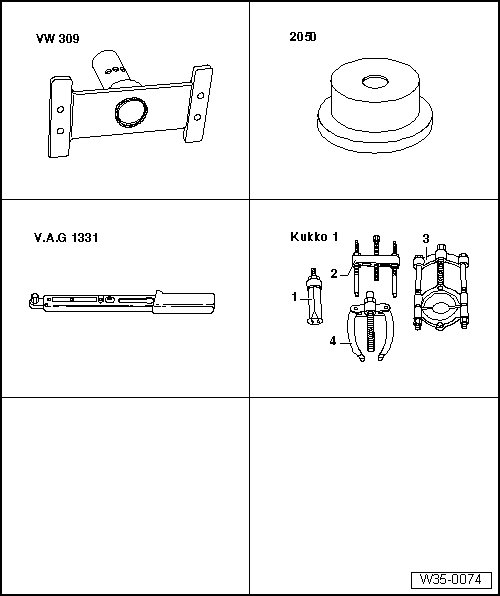

Special tools, testers and auxiliary items required
• Holding Plate (VW 309)
• Thrust Plate (2050)
• Torque Wrench 5-50 Nm (V.A.G 1331)
• Kukko Extractor 46-58 mm (21/7)
• Kukko Support (22/2)

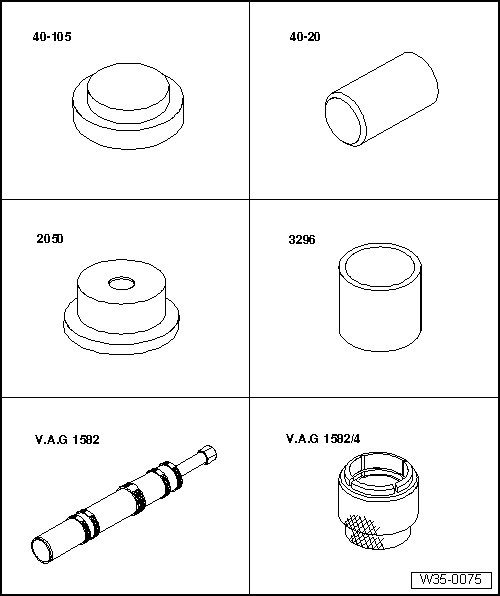

Special tools, testers and auxiliary items required
• Thrust Piece (40-105)
• Sleeve (40-20)
• Thrust Plate (2050)
• Tube (3296)
• Tapered Roller Bearing Puller (V.A.G 1582)
• Attachment to V.A.G 1582 (V.A.G 1582/4)
Special tools, testers and auxiliary items required
• Thrust Plate (VW 401)
• Thrust Plate (VW 402)
• Punch (VW 407)
• Thrust Disc (VW 412)
• Thrust Pad 16.5/28 mm Dia. (VW 431)
• Arbor 50 mm Dia. (VW 432)

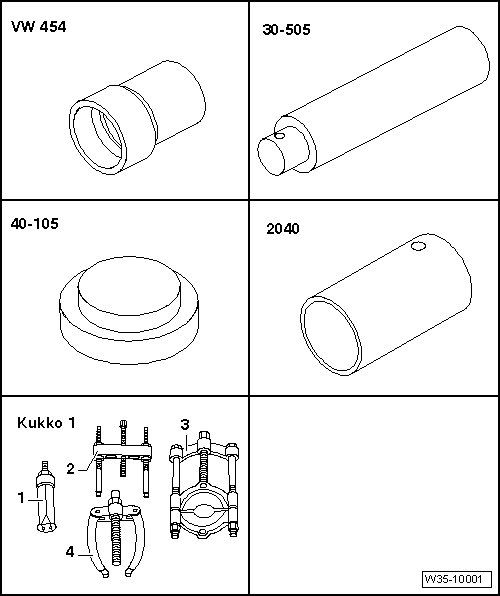

Special tools, testers and auxiliary items required
• Thrust Tube (VW 454)
• Locking Pin (30-505)
• Thrust Piece (40-105)
• Press Tube (2040)
• - 1 - Kukko Extractor 30-37 mm (21/5)
• - 2 - Kukko Puller 65-160 mm (18/1)
• - 3 - Kukko Separating Tool 12-75 mm (17/1)
• - 3 - Kukko Separating Tool 22-115 mm (17/2)
• - 4 - Kukko Support (22/2)
Special tools, testers and auxiliary items required
• - 1 - Kukko Extractor 46-58 mm (21/7)
• - 1 - Kukko Extractor (21/8)
• - 2 - Kukko Puller (18/2)
• - 3 - Kukko Separating Tool 22-115 mm (17/2)
• - 4 - Kukko Support (22/2)
• Pulling Hook (T20143/1)
• Thrust Piece (T40008)
• Grip (V.A.G 1582/7)
