Controls, Housing

Special Tools

Special tools, testers and auxiliary items required

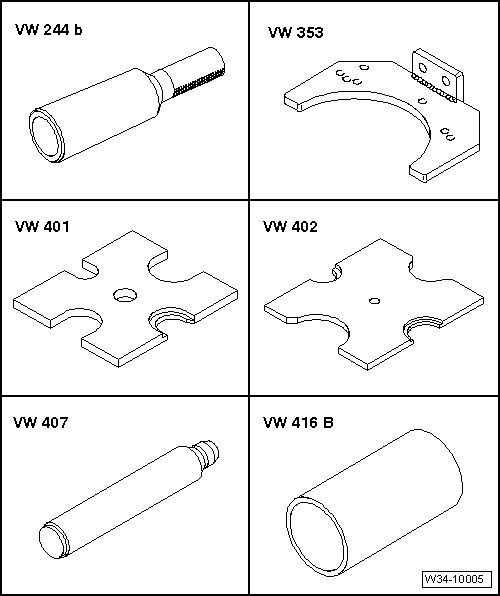

• Driving Sleeve (VW 244 B)

• Transmission Support (VW 353)

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Punch (VW 407)

• Tube 37 mm Dia. (VW 416 B)

Special tools, testers and auxiliary items required

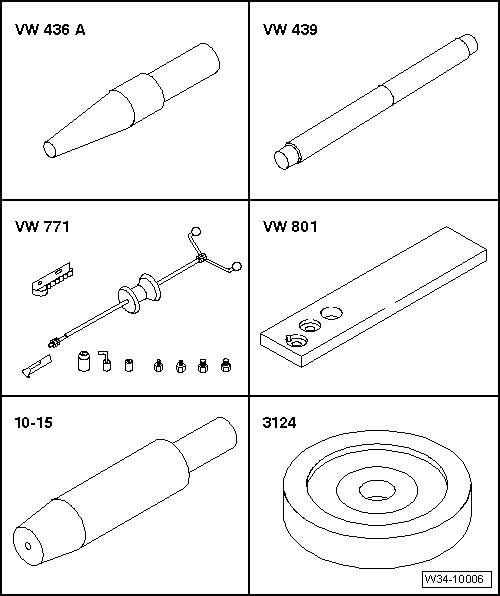

• Guide Piece (VW 436 A)

• Guide Piece (VW 439)

• Slide Hammer-Complete Set (VW 771)

• Holding Fixture (VW 801)

• Guide Piece (10-15)

• Thrust Pad (3124)

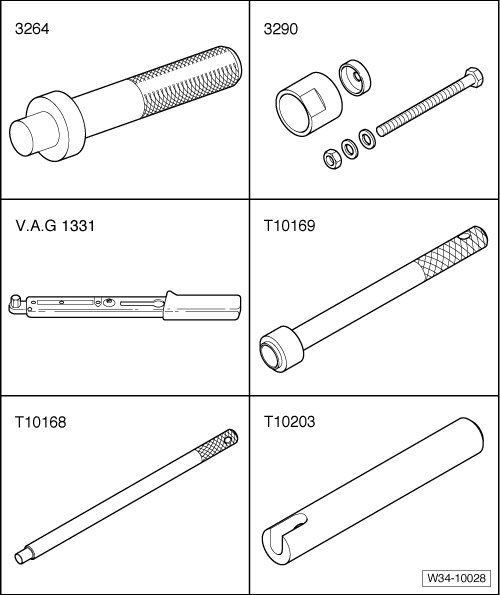

Special tools, testers and auxiliary items required

• Bearing Driver (3264)

• Subframe Support Assembling Device (3290)

• Torque Wrench 5-50 Nm (V.A.G 1331)

• Drift (T10168)

• Thrust Piece (T10203)

• Drift (T10169)

Special tools, testers and auxiliary items required

• Engine Support Bridge (10 - 222 A)

• Adapter (10-222 A /3)

• Adapter (10-222 A /8)

• Adapter (10-222 A /18)

• Transmission Support (3282)

Special tools, testers and auxiliary items required

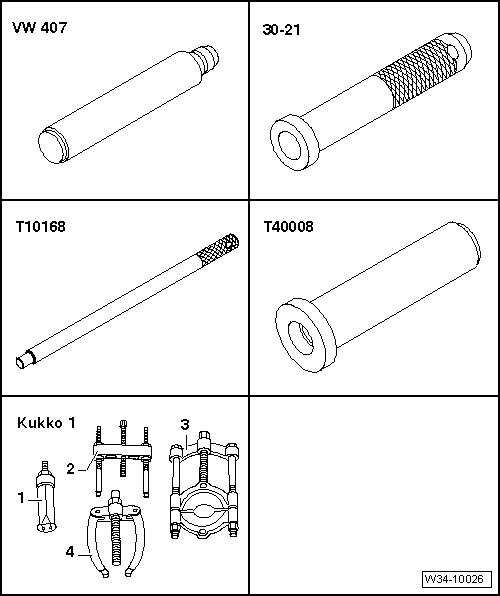

• Punch (VW 407)

• Sleeve (30 - 21)

• Drift (T10168)

• Thrust piece (T40008)

• Kukko Extractor 14.5-18.5 mm (21/2)

• Kukko Extractor 23.5-30 mm (21/4)

• Kukko Support (4 - 22/2)

Special tools, testers and auxiliary items required

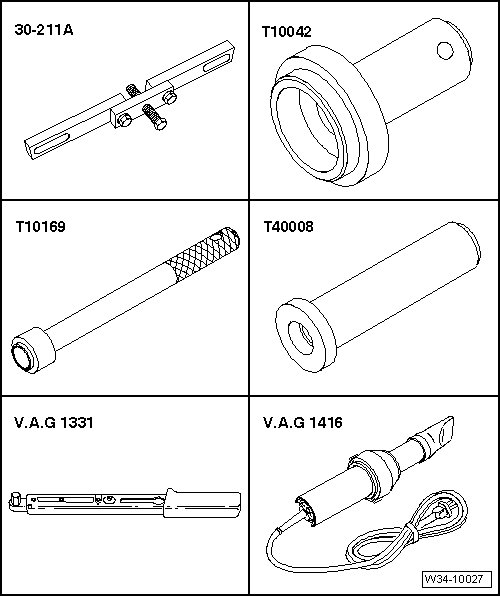

• Bracket (30-211A)

• Thrust Piece (T10042)

• Thrust Piece (T40008)

• Torque Wrench 5-50 Nm (V.A.G 1331)

• Hot Air Blower (V.A.G 1416)

• Or Drift (T10169)

Special tools, testers and auxiliary items required

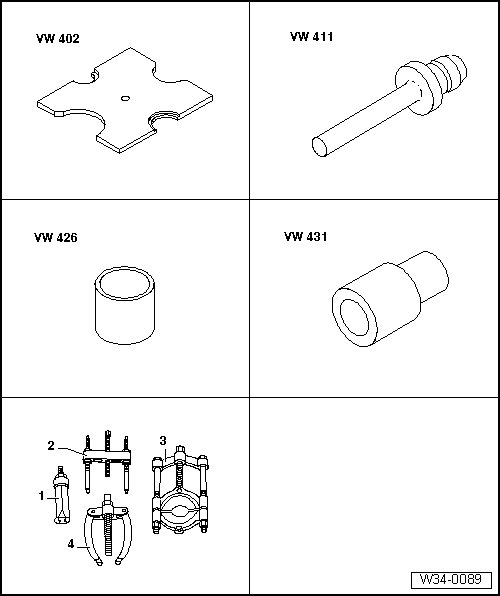

• Thrust Plate (VW 402)

• Punch (VW 411)

• Tube Trans. Drive Shaft (VW 426)

• Thrust Pad 16.5/28 mm Dia. (VW 431)

• - 1 - Kukko Extractor 18.5-23.5 mm (21/3)

• - 4 - Kukko Support (22/1)

Special tools, testers and auxiliary items required

• Holding Plate (VW 309)

• Holding Fixture (VW 313)

• Transmission Support (VW 353)

• Thrust Tube (VW 455)

• or Sleeve (3160)

• Slide Hammer-Complete Set (VW 771)

• - 1 - Kukko Internal Puller (21/01)

• - 3 - Kukko Separating Tool 5-60 mm (17/0)

• - 4 - Kukko Support (22/1)

• Extractor Lever (VW 681)

Special tools, testers and auxiliary items required

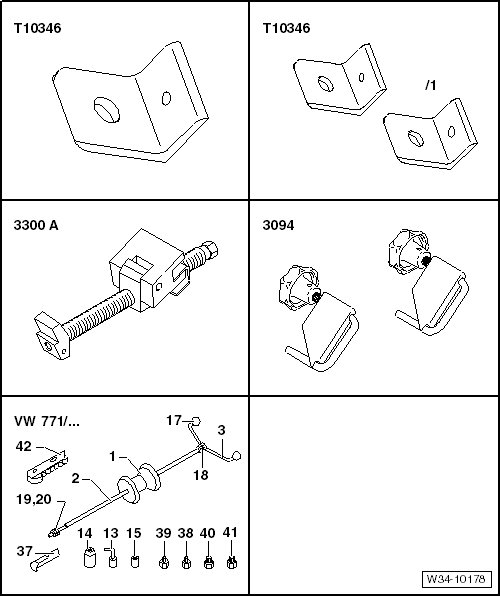

• 2 x Bracket (T10346)

• Bracket (T10346/1)

• Engine Support Device (3300 A)

• Adapter for VW 771 Slide Hammer (VW 771/40)

• Hose Clamps up to 25 mm Dia. (3094)

• Grease for clutch disc shaft splines (G 000 100)

Special tools, testers and auxiliary items required

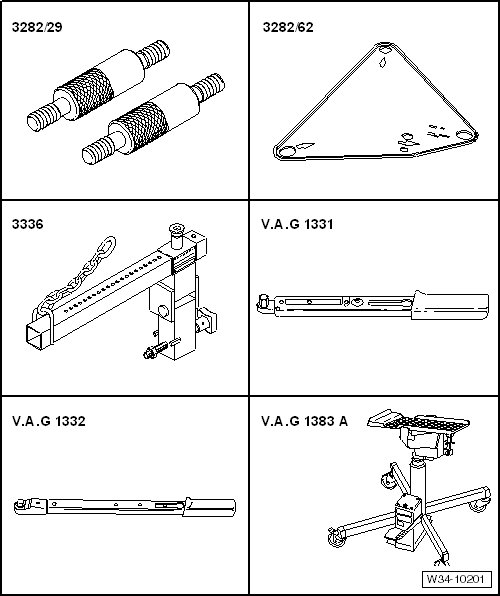

• Transmission support elements (determine when mounting the adjustment plate on the transmission support )

• Adjusting Plate (3282/62)

• Transmission Support Jig (3336) for transporting the transmission

• Torque Wrench 5-50 Nm (V.A.G 1331)

• Torque Wrench 40-200 Nm (V.A.G 1332)

• Engine/Transmission Jack (V.A.G 1383 A)

Special tools, testers and auxiliary items required

• Triple Square Socket Driver (3357)

• - 1 - Kukko Extractor 14.5-18.5 mm (21/2)

• - 1 - Kukko Extractor 23.5-30 mm (21/4)

• - 4 - Kukko Support (22/2)

• Kukko Support (22/1)

• Connecting Pin (T10027 A)

• Thrust Block (T10083)

• Socket and Extended Bit (T10107)

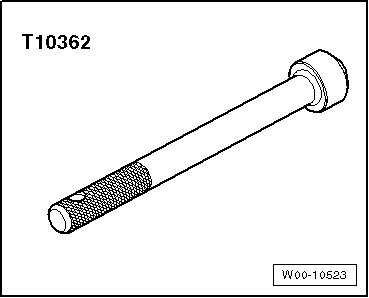

• Drift (T10362)

• Pulling Hook (T20143/1)

• Hose Clamp Pliers (V.A.G 1275)

• Torque Wrench 5-50 Nm (V.A.G 1331)

• Oil Collecting and Extracting Device (V.A.G 1782)

• Charging Device F/Haldex 2 Coup. (VAS 6291)

• Sleeve (VW 423)

• Not illustrated:

• Sleeve (3160)

• Bracket (30 - 211 A)

• Pin (3282/29)

• Transmission Support Jig (3336)

• Adapter for Oil Filling (VAS 6291/3)

• Extractor Lever (VW 681)

• Adapter (VW 771/40)
