Differential: Tools and Equipment
Special Tools
Special tools, testers and auxiliary items required
• Transmission Support (VW 353)
• Magnetic Plate 50 mm Dia. (VW 385/17)
• Dial Gauge Holder (VW 387)
• Thrust Plate (VW 402)
• Punch (VW 408 A)
• Thrust Pad (3005)
Special tools, testers and auxiliary items required
• Tube (3259)
• Press Tool (3345)
• Torque Wrench 5-50 Nm (V.A.G 1331)
• - 1 - Kukko Extractor 46-58 mm (21/7)
• - 4 - Kukko Support (22/2)
Special tools, testers and auxiliary items required
• Slide Hammer-Complete Set (VW 771)

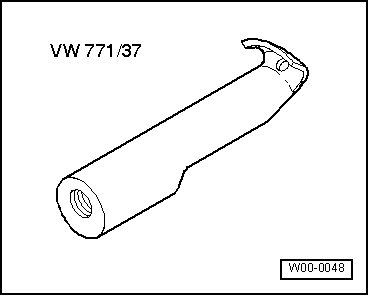

• Additional Part for VW 771 (VW 771/37)
• Thrust Piece (3305)
• Torque Wrench 5-50 Nm (V.A.G 1331)
• Torque Wrench 40-200 Nm (V.A.G 1332)

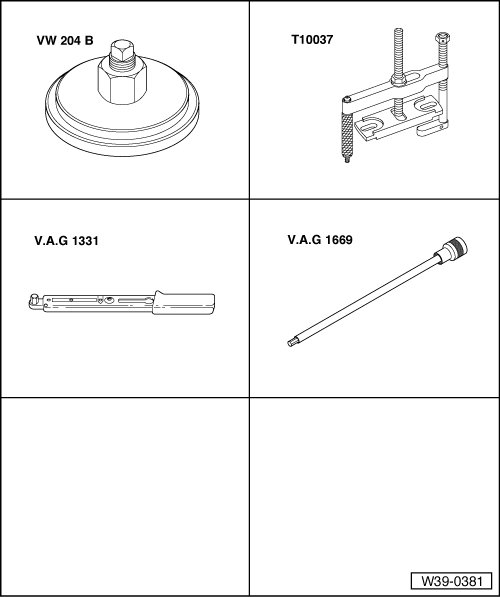

Special tools, testers and auxiliary items required
• Crankshaft Seal Installing Tool (VW 204 B)
• Puller (T10037)
• Torque Wrench 5-50 Nm (V.A.G 1331)
• Hex Extension (V.A.G 1669)
Special tools, testers and auxiliary items required
• Holding Fixture (VW 313)
• Tube 42 mm Dia. (VW 516)
• Thrust Piece (40-105)
• Thrust Piece (T10049)
• Gearbox Support (T10108)
• Stop Plate (T10108/1)

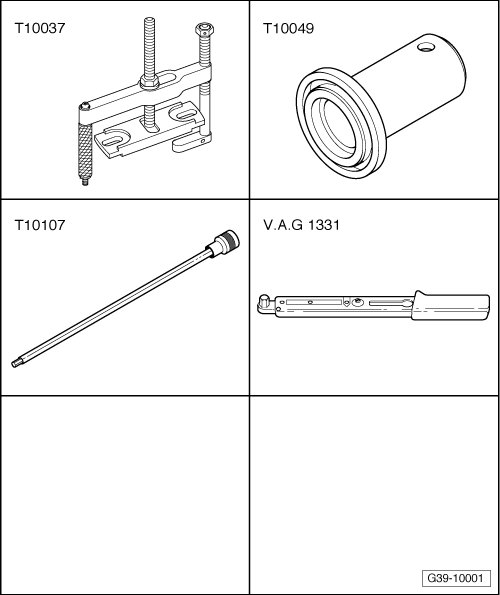

Special tools, testers and auxiliary items required
• Puller (T10037)
• Thrust Piece (T10049)
• Socket and Extended Bit (T10107)
• Or Socket and Extended Bit (T10107 A)
• Torque Wrench 5-50 Nm (V.A.G 1331)
• Sealing Grease (G 052 128 A1)

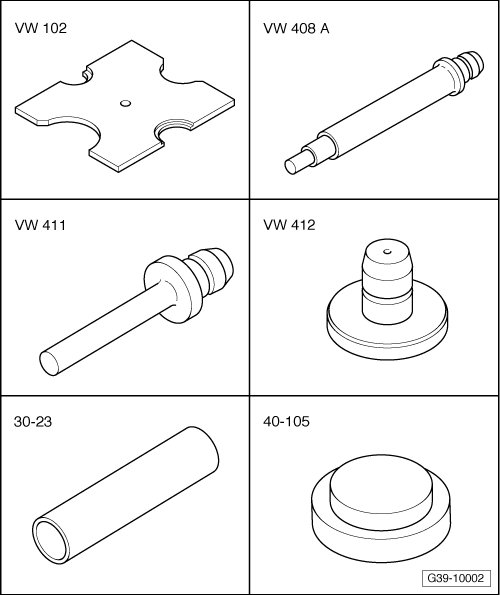

Special tools, testers and auxiliary items required
• Pressure Plate (VW 402)
• Punch (VW 408 A)
• Punch (VW 411)
• Thrust Disc (VW 412)
• Press Tube (30 - 23)
• Thrust Piece (40-105)

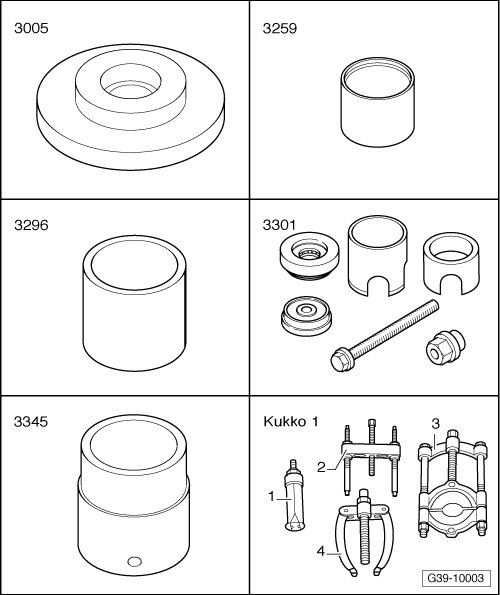

Special tools, testers and auxiliary items required
• Thrust Pad (3005)
• Tube (3259)
• Tube (3296)
• Assembly Tool (3301)
• Press Tool (3345)
• Kukko Extractor 46-58 mm (21/7)
• Kukko Puller 65-160 mm (18/1)
• Kukko Separating Tool 12-75 mm (17/1)
• Kukko Support (22/2)

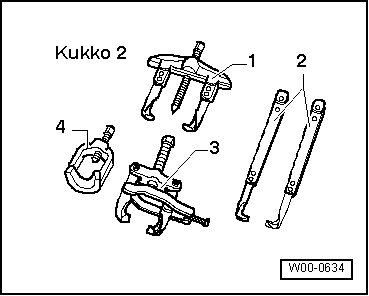

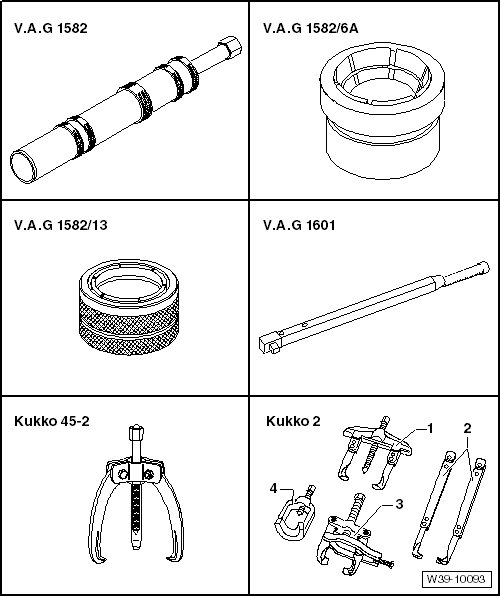

Special tools, testers and auxiliary items required
• Tapered Roller Bearing Puller (V.A.G 1582) with short sleeve
• Attachment to V.A.G 1582 (V.A.G 1582/6) or grip (V.A.G 1582/6A)
• - 1 - 2-Arm Puller Kukko (20/10)
• Adapter (V.A.G 1582/13)
• Torque Wrench (V.A.G 1601)
• Kukko Three-Arm Puller (45-2)

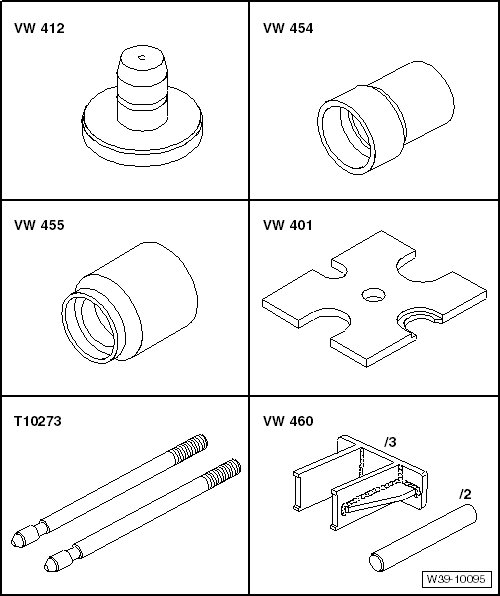

Special tools, testers and auxiliary items required
• Thrust Disc (VW 412)
• Thrust Tube (VW 454)
• Thrust Tube (VW 455)
• Thrust Plate (VW 401)
• Two M8 x 30 mm stud bolts or Guide Pins M8 (T10273)
• Bolt (VW 460/2)
Special tools, testers and auxiliary items required
• Kukko Puller (204/2)
• Thrust Piece (T10243)
• Thrust Piece (T10298)
• Pulling Hook (T20143/2)

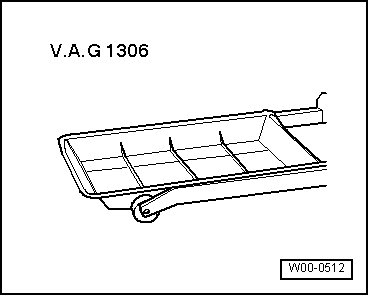

• Drip Tray (V.A.G 1306)

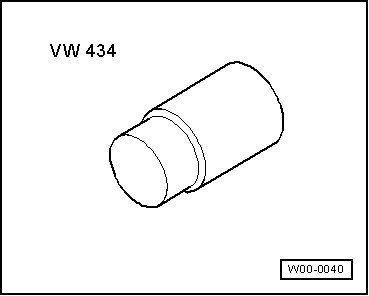

• Arbor (VW 434)
• Slide Hammer-Complete Set (VW 771)
• Additional Part for VW 771 (VW 771/37)
• Not illustrated:
• Knurled Nut (T10371/1)
• Assembly Tool (T10047)
• Thrust Piece (T40007)
• Arbor (VW 434)
• Extractor Lever (VW 681)
Edition 01 03 2012
