Transmission Overview

Transmission Overview

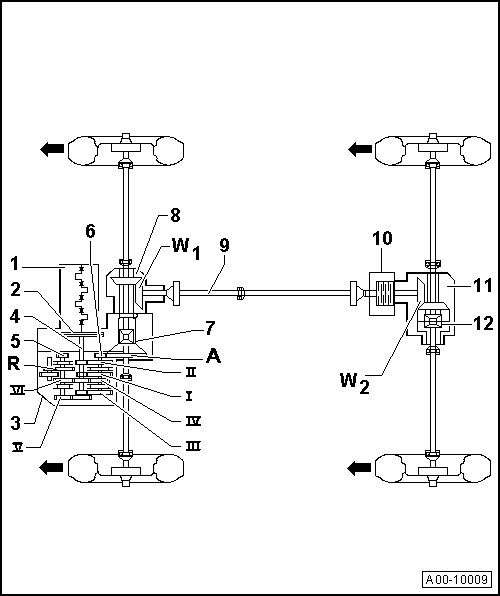

Component

The - arrows - point in the direction of travel.






1 Engine

2 Clutch

3 Manual Transmission

4 Input Shaft

5 Output Shaft for 5th, 6th and Reverse Gears (output shaft II)

6 Output Shaft for 1st to 4th Gear (output shaft I)

7 Differential

8 Bevel Box

9 Driveshaft

10 Haldex Clutch

11 Rear Final Drive

12 Differential

Gears

The - arrows - point in the direction of travel.






I - 1st Gear

II - 2nd Gear

III - 3rd Gear

IV - 4th Gear

V - 5th Gear

VI - 6th Gear

R - Reverse Gear

A - Final Drive

W1 - Front Bevel Box

W2 - Rear Bevel Box
