Differential Assembly: Tools and Equipment

Special Tools

Special tools, testers and auxiliary items required

• Diagnostic Cable, 3 m with Power Supply (VAS 5051/1)

• or Diagnostic Cable, 5 m without Power Supply (VAS 5051/3)

• Plate from Puller (T10037)

• Thrust Piece (T10049)

• Pressure Sleeve (T10071/3) from Assembly Tool (T10071)

• Puller (VW 391)

• Thrust Plate (VW 401)

• Punch (VW 407)

• Punch (VW 408 A)

• Driving Sleeve (VW 244 b)

• Sleeve-Press Tool (VW 522)

• Press Block (40-204 A)

• Hose Clamp Pliers (V.A.G 1275)

• Circlip Pliers (VW 161 A)

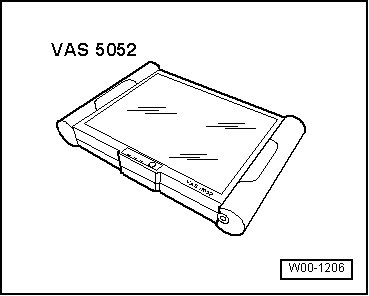

• Vehicle Diagnosis and Service Information System (VAS 5052)

• or Vehicle Diagnosis, Testing, and Information System (VAS 5051)

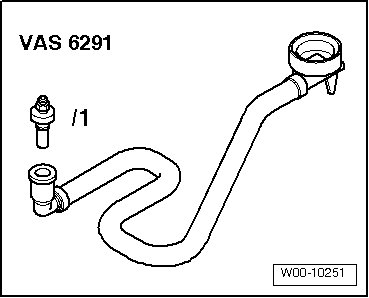

• Charging Device F/Haldex 2 Coup. (VAS 6291)

• Tensioning Strap (T10038)

• Engine-/Gearbox Jack (V.A.G 1383 A)

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Torque Wrench (40-200 Nm) (V.A.G 1332)

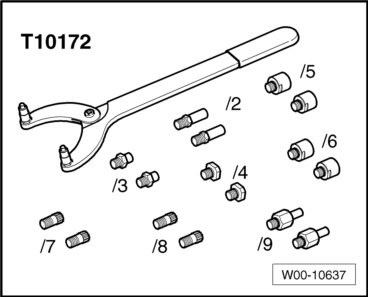

• Counterhold Tool (T10172)

• Torque Wrench (V.A.G 1783)

• Drip Tray for VAS 6100 (VAS 6208)

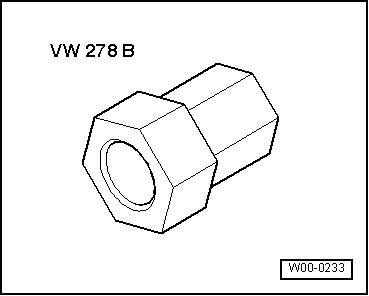

• Wrench (VW 278 B)

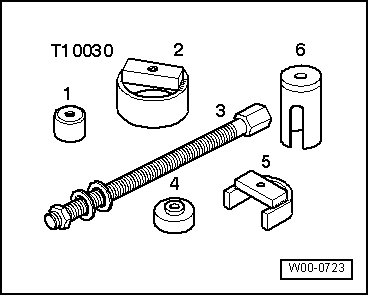

• Subframe Support Assembling Device (T10030/6) from the Assembly Tool (T10030)

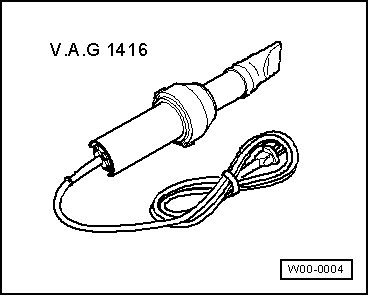

• Hot Air Blower (V.A.G 1416)

• Thrust Piece (40-105)

• - 1 - 2 Arm Puller Kukko 20/10 (20/10)

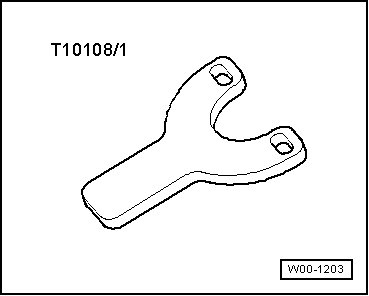

• Stop Plate (T10108/1)

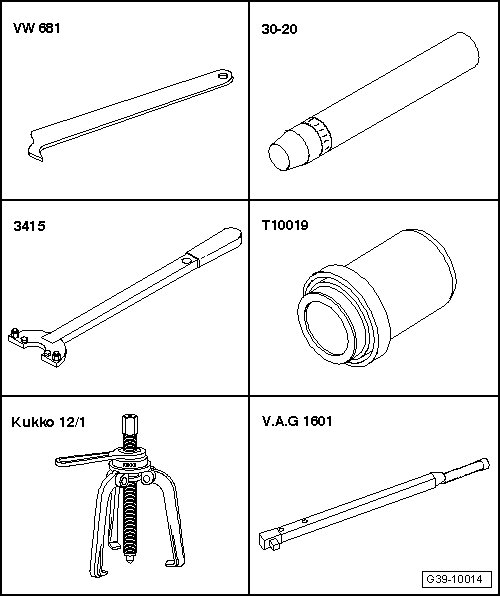

Special tools, testers and auxiliary items required

• Extractor Lever (VW 681)

• Drive Sleeve (30-20)

• Counter Support (3415)

• Thrust Piece (T10019)

• Kukko Puller No. 12/1 100 x 100 mm (Kukko 12/1)

• Torque Wrench (V.A.G 1601)

Special tools, testers and auxiliary items required

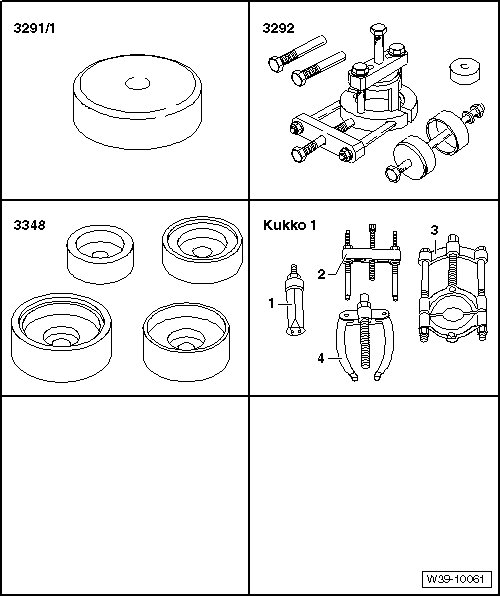

• Thrust Piece (3291/1) from the Assembly Device (3291)

• Spindle from the Assembly Device (3292)

• Thrust Pieces (3348 and 3348/1) from the Front and Rear Bearing Tool (3348)

• - 1 - Kukko Extractor 46-58 mm (21/7)

• - 2 - Kukko Puller (18/0)

• - 3 - Kukko Separating Tool 12-75 mm (17/1)

• - 4 - Kukko Support (Kukko 22/2)

Special tools, testers and auxiliary items required

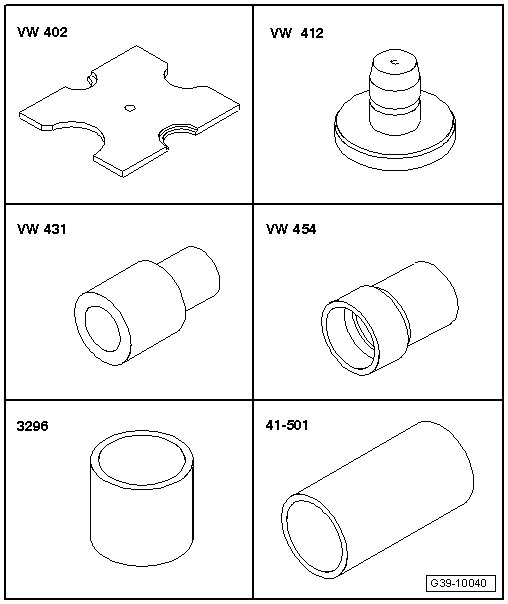

• Thrust Plate (VW 402)

• Thrust Disc (VW 412)

• Thrust Pad 16.5/28 mm Dia. (VW 431)

• Thrust Tube (VW 454)

• Tube (3296)

• Mounting Universal Joint (41-501)

Special Tools

Special tools, testers and auxiliary items required

• Diagnostic Cable, 3 m with Power Supply (VAS 5051/1)

• or Diagnostic Cable, 5 m without Power Supply (VAS 5051/3)

• Plate from Puller (T10037)

• Thrust Piece (T10049)

• Drip Tray for VAS 6100 (VAS 6208)

• Torque Wrench (5-50 Nm) (V.A.G 1331)
