Differential Mount: Description and Operation

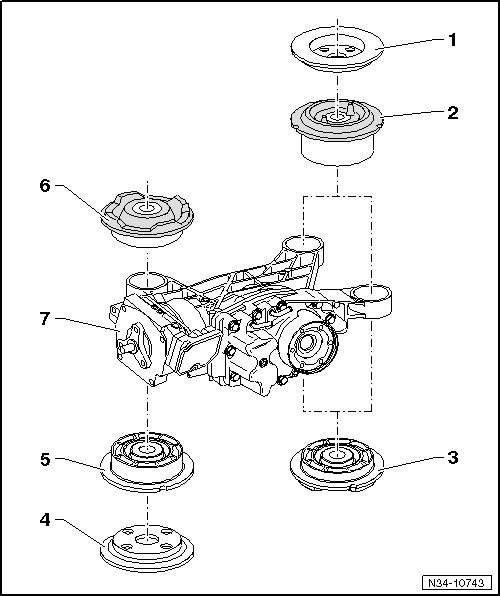

Bonded Rubber Bushing Overview






1 Buffer

• Remove before removing the bonded rubber bushing - item 2 -.

• Install on the bonded rubber bushing - item 2 -. Refer to => [ Installed Location of the and Bonded Rubber Bushing. Installation of the Buffer ] Service and Repair.

2 Upper Rear Bonded Rubber Bushing

• Removing, refer to => [ Removing the Upper Rear Bonded Rubber Bushing ] Service and Repair.

• Differentiation of the "upper rear" and the "lower front" bonded rubber bushings. Refer to => [ Differentiation of the and Bonded Rubber Bushings ] Service and Repair.

• Installed position, refer to => [ Installed Location of the and Bonded Rubber Bushing. Installation of the Buffer ] Service and Repair.

• Installing, refer to => [ Installing the Upper Rear and Lower Rear Bonded Rubber Bushings ] Service and Repair.

3 Lower Rear Bonded Rubber Bushing

• Removing, refer to => [ Removing the Lower Rear Bonded Rubber Bushing ] Service and Repair.

• Installing, refer to => [ Installing the Upper Rear and Lower Rear Bonded Rubber Bushings ] Service and Repair.

4 Buffer

• Remove before removing the bonded rubber bushing - item 5 -.

• Install on the bonded rubber bushing - item 5 -. Refer to => [ Installed Location of the and Bonded Rubber Bushing. Installation of the Buffer ] Service and Repair.

5 Lower Front Bonded Rubber Bushing

• Removing, refer to => [ Removing the Lower Front Bonded Rubber Bushing ] Service and Repair.

• Differentiation of the "upper rear" and "lower front" bonded rubber bushings. Refer to => [ Differentiation of the and Bonded Rubber Bushings ] Service and Repair.

• Installed position, refer to => [ Installed Location of the and Bonded Rubber Bushing. Installation of the Buffer ] Service and Repair.

• Installing, refer to => [ Installing the Lower Front and Upper Front Bonded Rubber Bushings ] Service and Repair.

6 Upper Front Bonded Rubber Bushing

• Removing, refer to => [ Removing the Upper Front Bonded Rubber Bushing ] Service and Repair.

• Installing, refer to => [ Installing the Lower Front and Upper Front Bonded Rubber Bushings ] Service and Repair.

7 Rear Final Drive

• Removing and installing, refer to => [ Rear Final Drive ] Rear Final Drive.
