Turbocharger

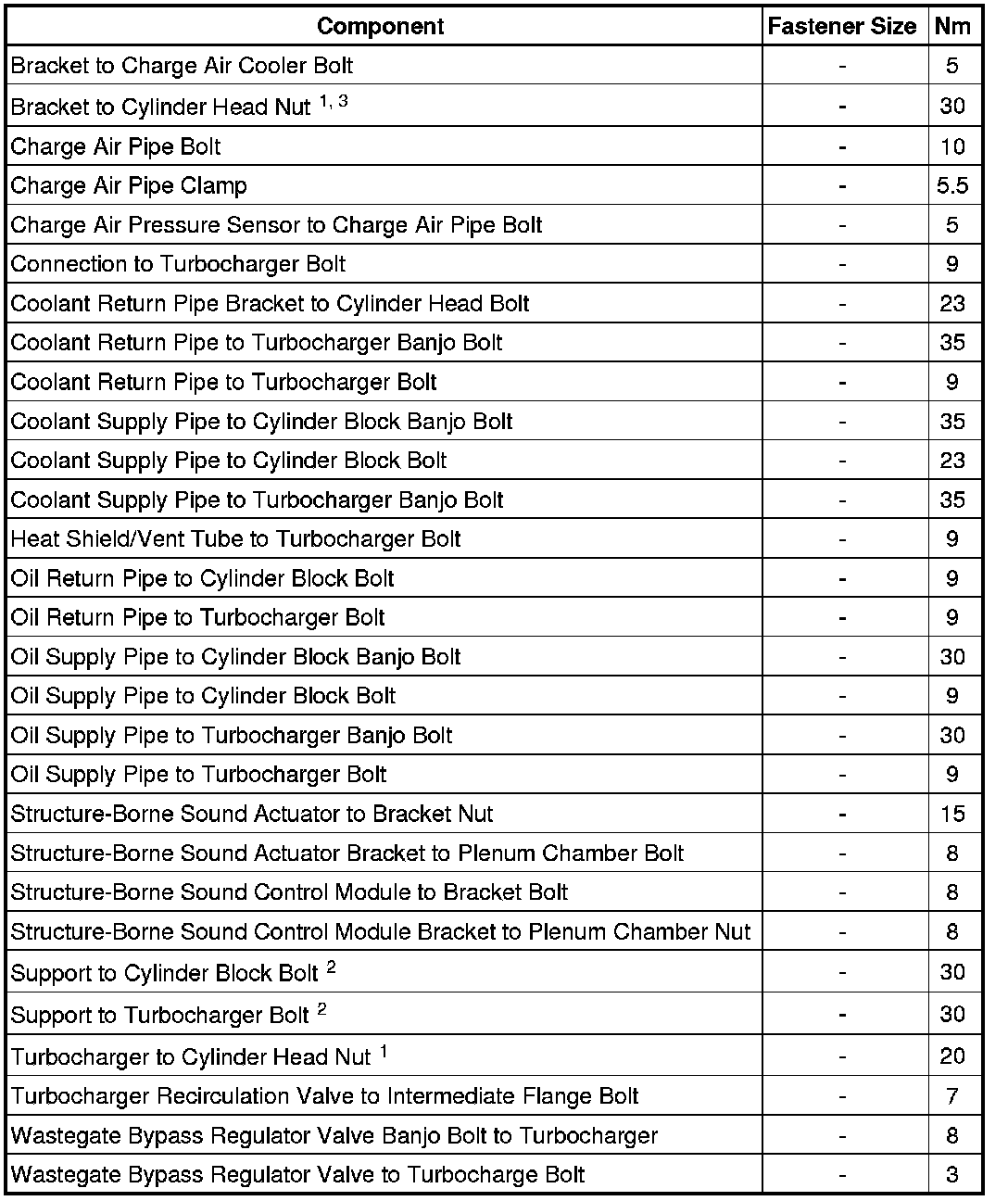

Fastener Tightening Specifications






• 1 Always replace

• 2 Lubricate the bolt with hot bolt paste, refer to the Parts Catalog

• 3 Lubricate the studs of the exhaust manifold with hot bolt paste; refer to the Parts Catalog
